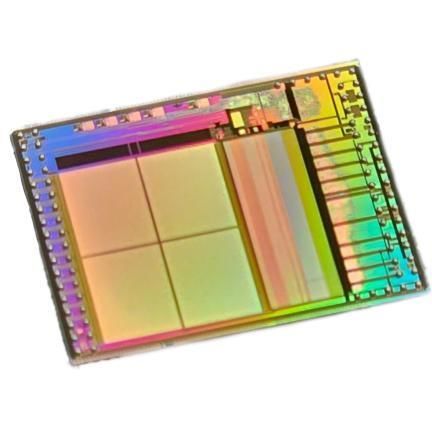

Time-of-flight sensor XTOF-102-B

Product overview
The XTOF-102-B chip is a monolithic, fully integrated photoelectric CMOS device for optical distance measurement and object detection in industrial applications.

Product details
The XTOF-102-B is a fully integrated 3D-cwTOF imager with a resolution of 320 × 240 pixels (QVGA). Built as a system-on-chip (SoC), it contains the complete control logic to operate adjacent to the CCD pixel field. The chip outputs 12-bit DCS distance data per pixel, accessible via a Mobile Industry Processor Interface (MIPI).

Specifications

• 320 × 240 pixels, pixel pitch 20 μm, quantum efficiency 85% @ 850 nm
• Power consumption: 1,250 mW
• Integrated illumination driver
• Output data: 12-bit DCS distance per pixel

Features

• Operating range up to 240 m
• On-chip high-power LED or laser diode driver
• Compact footprint: 11.7 × 9.3 mm
• Up to 700 ToF frames per second

Applications

• Volumetric sensing
• High-frame-rate imaging
• Robotics and drone navigation
• Smart home automation sensors

Documentation
Datasheet available: XTOF-102-B Datasheet (PDF).

Technical specifications

• Resolution: 320 × 240 pixels (QVGA)
• Pixel pitch: 20 μm
• Quantum efficiency: 85% @ 850 nm
• Power consumption: 1,250 mW
• Integrated illumination driver
• Output data resolution: 12-bit DCS distance data per pixel
• Interface: MIPI access to per-pixel data
• Operating range: up to 240 m
• Illumination driver: on-chip high-power LED or laser diode driver
• Footprint: 11.7 × 9.3 mm
• Frame rate: up to 700 ToF frames per second
