Wavelength-sensitive photodiode C30737LH-500-92N

avalancheLIDARsilicon

Product overview

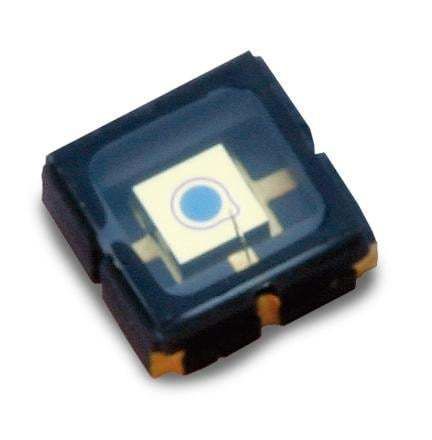

The C30737LH-500-92N is a silicon avalanche photodiode (Si APD) featuring a 500 µm active diameter in a leadless ceramic carrier (LCC) with a 905 nm optical bandpass window and enhanced response near 900 nm. It is intended for photon detection in LiDAR, rangefinding and similar high-speed optical systems.

Key features

• Active diameter: 500 µm
• 905 nm optical bandpass filter for narrowband detection
• Enhanced responsivity around 900 nm (60 A/W at 900 nm)
• Low noise with noise current ~0.1 pA/√Hz
• Fast temporal response: rise/fall time 0.9 ns (Rload = 50 Ω) and cut-off frequency ≈ 380 MHz
• Available in leadless ceramic carrier (LCC) with 3×3 mm glass window

Applications

• LiDAR and airborne/terrestrial ranging
• Laser range-finding and time-of-flight sensors
• Security and scanning systems
• Cost-sensitive photodetection solutions requiring high-speed response

Specifications
Active Diameter: 500 µm
Peak Sensitivity Wavelength: 905 nm
Optical Window / Filter: 905 nm bandpass
Breakdown Voltage (Vbd): 180–260 V (binning available)
Temperature Coefficient of Vop (constant M): 1.3 V/°C
Gain: 100 at 900 nm
Responsivity: 60 A/W at 900 nm
Dark Current (Id): < 1.0 nA (typical 0.1 nA)
Noise Current: 0.1 pA/√Hz
Capacitance: 1 pF
Rise/Fall Time: 0.9 ns (Rload = 50 Ω)
Cut-off Frequency: 380 MHz
Storage Temperature: -50 °C to +100 °C
Operating Temperature: -40 °C to +85 °C
Package: 3×3 mm glass window in leadless ceramic carrier (LCC)

Technical specifications

• Active diameter: 500 µm
• Peak sensitivity wavelength: 905 nm
• Breakdown voltage (Vbd): 180–260 V (binning available)
• Temperature coefficient of Vop for constant M: 1.3 V/°C
• Gain: 100 @ 900 nm
• Responsivity: 60 A/W at 900 nm
• Dark current (Id): < 1.0 nA (typical 0.1 nA)
• Noise current: 0.1 pA/√Hz
• Capacitance: 1 pF
• Rise/Fall time: 0.9 ns (Rload = 50 Ω)
• Cut-off frequency: 380 MHz
• Storage temperature: -50 °C to +100 °C
• Operating temperature: -40 °C to +85 °C
• Package: 3×3 mm glass window, leadless ceramic carrier (LCC)
• Optical window/filter: 905 nm bandpass
