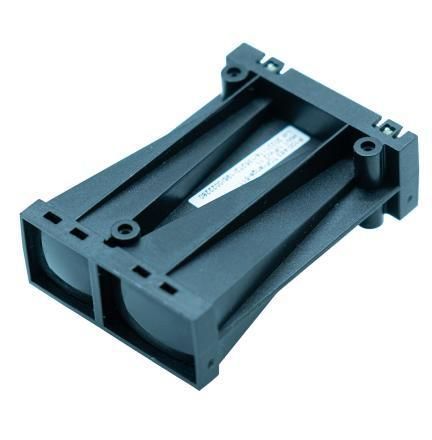

Time-of-flight sensor XTOF-RM-100

Product overview
The XTOF-RM-100 is a miniaturized 3D Time-of-Flight camera module integrating the XTOF-100-A ToF sensor and a compact illumination LED. It provides direct distance outputs and a small detection spot for precise point measurements.

Performance
The module delivers fully calibrated and compensated 3D distance measurements from 0.05 to 15 m with high speed and accuracy. It maintains reliable measurements in high ambient light up to 100 kLux, suitable for indoor and bright outdoor environments.

Specifications

• Range: 0.05 to 15 m
• Field of View (FoV): 0.18° horizontal/vertical
• Detection spot: 3 x 3 mm at 1 m distance
• Measurement rate: >500 measurements per second

Features

• Low power consumption
• Ambient-light tolerant up to 100 kLux
• Fully calibrated and compensated output
• High-speed serial interface for system integration

Applications

• Safety and collision-avoidance systems
• Distance measurement from centimeters to meters
• Level and position sensing

Technical specifications

• Range: 0.05 to 15 m
• Field of View (FoV): 0.18° horizontal/vertical
• Detection spot: 3 x 3 mm at 1 m distance
• Measurement rate: >500 measurements per second
• Illumination: integrated small LED
• Sensor: XTOF-100-A Time-of-Flight chip
• Calibration: fully calibrated and compensated
• Ambient light tolerance: up to 100 kLux
• Interface: high-speed serial interface
• Power: low power consumption
