Photodiode array VTA1616H-L-NC-00-0

Overview
The VTA1616H-L-NC-00-0 is a silicon photodiode array (Si PDA) with 16 elements and a 1.6 mm pitch, engineered for X-ray detection in industrial imaging and non-destructive testing. It is available with optional scintillator crystals for low-energy conversion and can be paired with the VTA1616H-H series for high-energy channels in dual-energy detection architectures.

Details

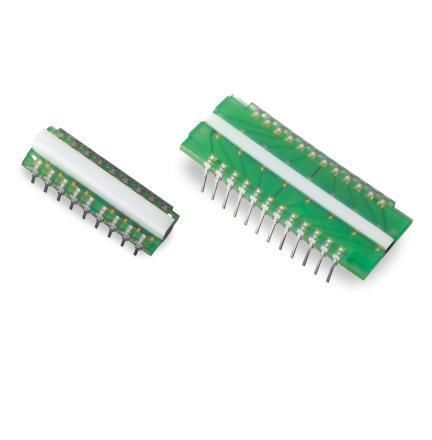

The VTA1616H Series comprises 16 single-element photodiodes mounted directly on an FR-4 printed circuit board. The 1.6 mm sensor-to-sensor pitch provides a balance of spatial resolution and channel density; other pitches are available as standard or custom options. The assembly is protected by a molded, X-ray radiation-hard transparent encapsulant for environmental resilience. Devices are offered with or without a scintillator mounted over the photodiode active area to convert X-rays into visible photons.

Features

• 16 single-element photodiodes (16 channels)
• 1.6 mm sensor-to-sensor pitch
• Extremely low dark current and low leakage
• High signal-to-noise ratio for improved detection
• Optional scintillator crystals to convert X-rays to visible light
• Compatible with single- or dual-energy X-ray detection systems

Documentation
Datasheet: Excelitas VTA1616H Series Linear Photodiode Array datasheet (product datasheet available).

Technical specifications

• Product family: VTA1616H Series
• Number of elements: 16
• Pitch: 1.6 mm
• Detector type: Silicon photodiode array (Si PDA)
• Mounting: 16 single-element photodiodes mounted on FR-4 PCB
• Encapsulant: Molded, X-ray radiation-hard transparent material
• Scintillator: Optional crystals available on demand; available with or without scintillator mounted over active area
• Performance: Extremely low dark current, high signal-to-noise ratio
• Compatibility: Suitable for single- or dual-energy X-ray detection architectures; can be paired with VTA1616H-H Series for high-energy detection
• Typical applications: X-ray detection systems, industrial inspection, baggage scanning, non-destructive testing (NDT)
