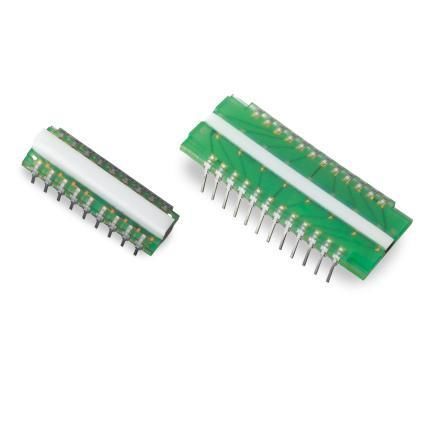

Chip on carrier photodiode array VTA1216H-H-SC-01-0

Product Overview
The VTA1216H-H-SC-01-0 is a 16-element photodiode array (PDA) designed for X-ray detection in single- or dual-energy imaging architectures. The device features a 1.2 mm sensor pitch and can be supplied with a range of scintillator crystals, including CsI HE for high-energy detection. It is compatible with pairing to VTA1216H-L series detectors for low-energy channels in dual-energy systems.

Details
The VTA1216H Series comprises a 16-channel high-resolution photodiode array implemented as eight dual-element photodiodes mounted on an FR-4 printed circuit board (PCB). The photo-sensitive areas are covered by a transparent coating and bond wires are protected by a glob-top encapsulant. Off-the-shelf and custom pitch options are available on request. Parts may be delivered with or without a scintillator material mounted over the photodiode active area to convert incident X-rays into visible photons.

Key Features

• Extremely low dark current photodiodes for high sensitivity
• High signal-to-noise ratio suitable for imaging applications
• Optional scintillator crystals (e.g., CsI HE) to convert X-rays to visible light
• 16 channels at 1.2 mm pitch
• Compatible with single- and dual-energy detection systems; pairs with VTA1216H-L series for low-energy detection

Technical specifications

• Series: VTA1216H
• Number of elements: 16 channels (8 dual-element photodiodes)
• Pitch: 1.2 mm (sensor-to-sensor spacing)
• Substrate / mounting: Photodiodes mounted on FR-4 PCB
• Protective layers: Transparent coating over photosensitive area; glob-top encapsulant protecting bond wires
• Optional scintillator: Mounted over photodiode active area on request; various crystals available (e.g., CsI HE for high-energy detection)
• Application: Designed for X-ray detection; suitable for single- or dual-energy architectures and for pairing with VTA1216H-L series
• Performance: Extremely low dark current and high signal-to-noise ratio
