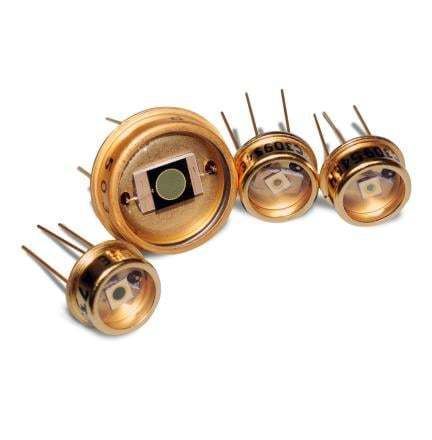

Avalanche photodiode C30955EH

wavelength-sensitiveLIDARsilicon

Product overview
The C30955EH long-wavelength, enhanced silicon avalanche photodiode (Si APD) provides a 1.5 mm active-area diameter and high quantum efficiency at 1060 nm. Designed in a TO-5 package, this Si APD is built using a double-diffused "reach-through" structure to extend response beyond 900 nm without introducing undesirable characteristics.

Features & Benefits

• Active diameter 1.5 mm
• High quantum efficiency at 1060 nm
• Fast response time
• Wide operating temperature range
• Low capacitance
• Hermetically sealed packages
• RoHS compliant
• TEC option available

Applications

• Range finding
• LiDAR
• YAG laser detection

Technical specifications

• Model: C30955EH
• Type: Long-wavelength, enhanced Silicon Avalanche Photodiode (Si APD)
• Active area diameter: 1.5 mm
• Package: TO-5
• Structure: Double-diffused "reach-through"
• Long-wave response: >900 nm
• Responsivity: 70 A/W at 900 nm
• Responsivity: 34 A/W at 1050 nm
• Responsivity: 5 A/W at 1150 nm
• Options: TEC option available
• Compliance: RoHS compliant
