Silicon photodiode C30737CH series

LIDARwavelength-sensitiveavalanche

Product Description:

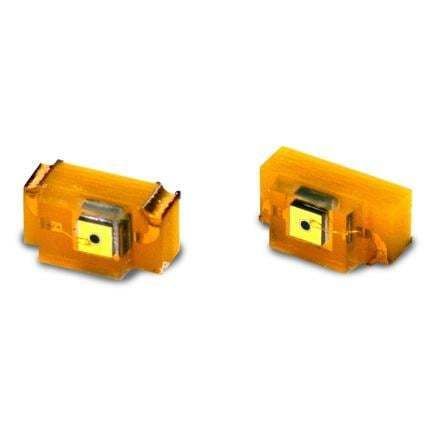

The C30737CH-300-70 Silicon Avalanche Photodiode (Si APD) provides a 300 μm active diameter with enhanced 800 nm response in a side-looking leadless laminated carrier (LCC) suitable for compact detector assemblies.

Key Features:

• High responsivity between 500 and 1000 nm
• Low noise and extremely fast rise time at all wavelengths with a frequency response above 700 MHz
• Active diameter of 300 μm and optimized for 800 nm response
• Leadless laminated carrier with option "CH"

Applications:

• Laser-range finding
• Distance meters
• Area and security scanning
• Applications requiring a low-cost, high-performing detector

Specifications:

• Active Diameter: 300 μm
• Peak Sensitivity Wavelength: 800 nm
• Breakdown Voltage Vbd: 110-160 V
• Gain: 100 @ 800 nm
• Responsivity: 35 A/W at 635 nm
• Dark Current: 1 nA
• Noise Current: 0.2 pA/√Hz
• Capacitance: 0.7 pF
• Cut-off frequency: 700 MHz
• Storage Temp: -20°C to +70°C
• Operating Temp: -10°C to +50°C
• Package: 2x4 mm FR4 epoxy side-looking leadless laminated carrier
