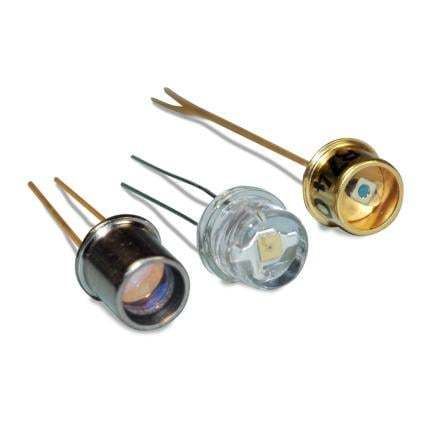

Avalanche photodiode (APD) module C30724PH

Product Overview
The C30724PH Silicon avalanche photodiode (Si APD) delivers peak sensitivity at 920 nm in a compact plastic TO-18 package. Optimized for 800–950 nm operation and particularly suited to high-volume 905 nm laser range-finding systems, the device provides fast 5 ns rise/fall times and can be operated at fixed bias without temperature compensation.

Key Features

• 920 nm peak sensitivity (optimized 800–950 nm)
• 0.5 mm active diameter
• Plastic TO-18 (T1 ¾) package
• Fast response: 5 ns rise and fall time
• Operates at low amplification and fixed operating voltage
• No temperature compensation required for typical range-finding use

Applications

• 905 nm laser range finding and LIDAR modules
• Laser distance meters
• Traffic speed enforcement guns

Specifications

• Active diameter: 0.5 mm
• Breakdown voltage: 350 V
• Capacitance: 1 pF
• Dark current (total bulk + surface): 20, <40 nA
• Gain: >12, 15, <18
• Noise current: 0.1, <0.25 pA/√Hz
• Package: T1 ¾ plastic (TO-18)
• Peak sensitivity wavelength: 920 nm
• Responsivity: 8.5 A/W at 920 nm
• Rise/fall time: 5 ns
• Vop range: 120-200 V
• Spectral range: 400-1100 nm
