LIDAR photodiode C30737LH-230-83N

wavelength-sensitiveavalanchesilicon

Product overview:

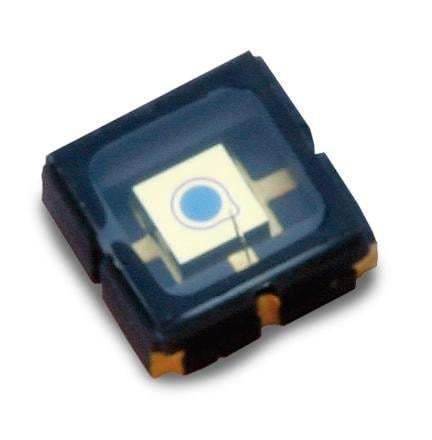

The C30737LH-230-83N Silicon Avalanche Photodiode (Si APD) provides an active diameter of 230 µm, enhanced 800 nm response and an integrated 650 nm optical bandpass in a 3 x 3 mm glass-window Leadless Ceramic Carrier (LCC) with LH option.

Key features:

• High responsivity filtered at 650 nm
• Low noise and extremely fast rise time across wavelengths; frequency response > 1.5 GHz
• Active diameter 230 µm, optimized for 800 nm
• Integrated optical bandpass filter at 650 nm
• Leadless Ceramic Carrier (LCC) package, LH option

Applications:

• LiDAR
• Laser range finding
• Security scanning
• Cost-sensitive, high-performance detector applications

Specifications:

• Active Diameter: 230 μm
• Peak Sensitivity Wavelength: 650 nm
• Breakdown Voltage (Vbd): 120-210 (binning available)
• Temperature Coefficient of Vop for constant M: 0.5 V/°C
• Gain: 100 @ 650 nm
• Responsivity: 35 A/W at 650 nm
• Dark Current (Id): 0.05 nA (typical); <0.5 nA (max)
• Noise Current: 0.1 pA/√Hz
• Capacitance: 1 pF
• Rise/Fall Time: 0.2 ns (R load = 50 Ω)
• Cut-off Frequency: 1.5 GHz
• Storage Temperature: -50°C to +100°C
• Operating Temperature: -40°C to +85°C
• Package: 3 x 3 mm glass-window Leadless Ceramic Carrier (LCC)
• Window: 650 nm filter
