Avalanche photodiode (APD) module LLAM-1550E-R08BH

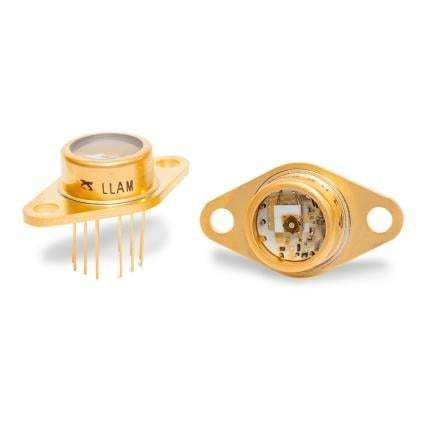

Product overview The LLAM-1550E-R08BH is a high-speed, low-light analog InGaAs avalanche photodiode (APD) receiver with a 0.08 mm (80 µm) active diameter. The module integrates a thermoelectric (TE) cooler and preamplifier in a hermetically sealed modified 12-lead TO-66 flange package for simplified mounting and enhanced heat sinking.

Series description The LLAM Series combines an APD chip, TE cooler and preamplifier in a RoHS-compliant hermetic package. The TE cooler reduces noise and maintains stable responsivity across an ambient range of 5°C to 40°C. LLAM-1060E and LLAM-1550E variants are designed with higher damage thresholds to withstand elevated optical power densities. The LLAM-1550E-R08BH includes the Excelitas C30645EH APD.

Applications

• Laser range finding
• Target recognition
• Distributed temperature sensing (DTS)
• Confocal microscopy
• Analytical instrumentation
• High-speed free-space optical communication

Performance / Noise
250 — 375 fW/√Hz at 1300 nm
220 — 330 fW/√Hz at 1550 nm

Technical specifications

• Model: LLAM-1550E-R08BH
• Brand: Excelitas
• Detector type: InGaAs avalanche photodiode (APD)
• Included APD: Excelitas C30645EH
• Active diameter: 0.08 mm (80 µm)
• Package: modified 12-lead TO-66 flange
• Bandwidth: 200 MHz
• Thermoelectric (TE) cooler: included (stable responsivity over 5°C to 40°C)
• Preamplifier: integrated
• Construction: hermetically sealed
• Compliance: RoHS-compliant
• Feature: designed for higher damage threshold to resist high optical power densities
• Primary use: detection of high-speed, low-light analog signals
