Infrared photodiode C30619GH-LC

InGaAsLIDARPIN

Product description

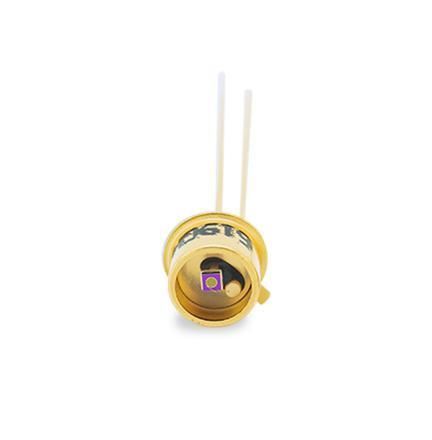

The C30619GH-LC is a large-area InGaAs PIN photodiode with a 0.5 mm active diameter chip in a TO-18 package with a flat glass window. It provides high quantum efficiency across 800 nm to 1700 nm. The device features an ultra-low capacitance (approximately half of standard types), delivering ≈2× the 3 dB bandwidth, high responsivity, high shunt resistance and low dark current. Typical devices exhibit < 1% non-linearity and uniformity within 2% across the active area.

Features & Benefits

• Ultra-low capacitance
• High responsivity at 1300 nm and 1550 nm
• Active area diameter: 0.5 mm
• High linearity over a large dynamic range
• Available in various robust TO packages
• Customizations (e.g. TEC) possible
• RoHS compliant

Applications

• Optical power meter
• Fiber optic test & communication
• Near-IR spectroscopy
• Laser profiling stations
• Instrumentation
• LiDAR

Technical specifications

• Responsivity: 0.20 A/W at 850 nm
• Responsivity: 0.90 A/W at 1300 nm
• Responsivity: 1.05 A/W at 1550 nm
• Active area diameter: 0.5 mm
• Package: TO-18 with flat glass window
• Spectral range / high quantum efficiency: 800 nm to 1700 nm
• Ultra-low capacitance (approximately half of standard type capacitance), yielding ≈2× 3 dB bandwidth
• High shunt resistance and low dark current
• Typical non-linearity < 1%
• Uniformity within 2% across the active area
• Available in robust TO packages; customizations such as TEC possible
• RoHS compliant
