LIDAR photodiode C30723GH

InGaAswavelength-sensitiveinfrared

Product Overview

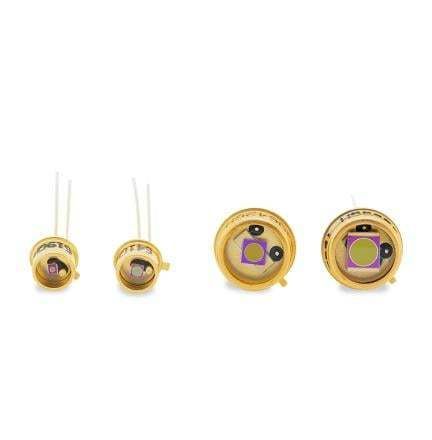

The C30723GH is a large-area InGaAs PIN Photodiode with a 5.0 mm active diameter chip in a TO-8 package with a flat glass window. This photodiode provides high quantum efficiency from 800 nm to 1700 nm. It features high responsivity, high shunt resistance, low dark current, low capacitance for fast response time and uniformity within two percent across the detector active area.

Features & Benefits

• Ultra-low capacitance option available
• High responsivity at 1300 nm and 1550 nm
• Active area diameter: 5.0 mm
• High linearity over large dynamic range
• Available in various robust TO packages
• Customizations (e.g. TEC) possible
• RoHS compliant

Applications

• Optical power meter
• Fiber optic test communication
• Near-IR spectroscopy
• Laser profiling stations
• Instrumentation
• LiDAR

Technical specifications

• Responsivity: 0.20 A/W at 850 nm
• Responsivity: 0.90 A/W at 1300 nm
• Responsivity: 0.95 A/W at 1550 nm
• Active area diameter: 5.0 mm
• Package: TO-8 with flat glass window
• Spectral range: ~800 nm to 1700 nm
• Low dark current, high shunt resistance, low capacitance for fast response
