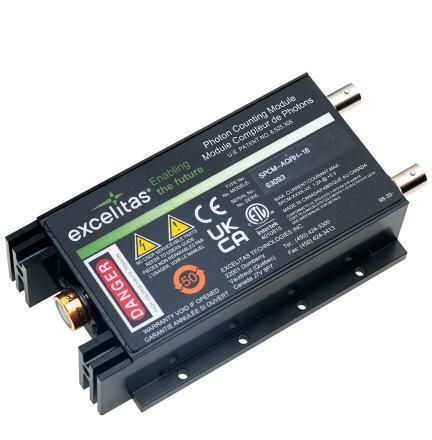

Fluorescence photon counter SPCM-AQRH-TR

time-correlatedhigh-sensitivity

Product overview
The Excelitas SPCM-AQRH-TR belongs to a timing-optimized generation of Single-Photon Counting Modules (SPCM) designed for high-resolution time-correlated measurements. The module integrates a specially selected SLiK silicon avalanche photodiode (APD) delivering timing resolution below 250 ps and peak photon detection efficiency above 75% at 650 nm over a 180 µm active diameter. The family supports gated output operation with a single +5 V supply and RoHS compliance.

Key features

• Timing resolution <250 ps (typical)
• Peak photon detection efficiency (PDE) >75% typical at 650 nm
• Active area: 180 µm diameter
• Gated output
• Single +5 V supply
• RoHS-compliant
• Maintained linearity at high count rates

Description
The SPCM-AQRH-TR series uses a selected SLiK silicon APD optimized for timing performance while preserving key detector characteristics such as uniformity, overload protection and temperature stability. Some parameters (for example afterpulse probability) are traded to achieve sub-250 ps timing; nonetheless the modules keep the linearity and operational stability required for quantitative TCSPC and FLIM measurements.

Applications

• Time-Correlated Single-Photon Counting (TCSPC)
• Fluorescence lifetime measurements
• Fluorescence Lifetime Imaging Microscopy (FLIM)

TIMING RESOLUTION MODULES SPCM-AQRH-WX-TR OPTION TABLE
Model | Output Pulse Width (ns) | Dead Time (ns) | Output Pulse Height (V) | -W0 | -W1 | -W2 | -W3 | -W4 | -BR1 | -BR2
SPCM-AQRH-1X-TR | 10 | 24 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT
SPCM-AQRH-2X-TR | 18 | 28 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT
SPCM-AQRH-3X-TR | 28 | 35 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT
SPCM-AQRH-4X-TR | 10 | 24 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT
SPCM-AQRH-5X-TR | 18 | 28 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT
SPCM-AQRH-6X-TR | 28 | 35 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | SM1 | C-MOUNT

Technical specifications

• Timing resolution: <250 ps (typical)
• Peak photon detection efficiency (PDE) @ 650 nm: >75% typical
• Active area diameter: 180 µm
• Detector type: specially selected SLiK silicon avalanche photodiode
• Output: gated output
• Supply: single +5 V supply
• Compliance: RoHS-compliant
• Performance attributes: uniformity, overload protection, temperature stability and linearity retained
• Available variants and output options: see timing resolution modules option table above (models 1X–6X with multiple output pulse widths, dead times, pulse heights and DCR options)
