Optical photon counter SPCM-1064

high-sensitivity

Product Overview

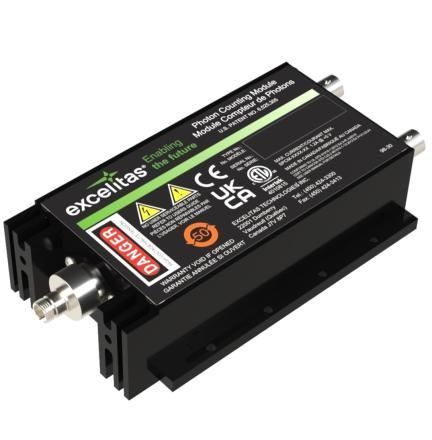

The Excelitas SPCM-1064 Single Photon Counting Module is engineered for high-performance detection across the 905 nm to 1064 nm range. It integrates a silicon avalanche photodiode delivering typical single-photon detection efficiency (PDE) of ~10% at 1064 nm and >50% between 750 nm and 950 nm. The module provides a 500 µm active area for improved uniformity and consistent signal capture, reducing calibration effort in precision measurements. It extends NIR response up to 1064 nm while preserving SPCM-AQRH family features such as stable temperature behavior, robust overload protection and highly linear output, ensuring reliable operation in demanding measurement environments.

Applications

• Raman spectroscopy
• Quantum communication
• Time-resolved photoluminescence
• Nonlinear optics experiments
• Single-molecule measurements

Model variants and dark count options

• SPCM-1064-30 — Free Space Window — < 1500 cps
• SPCM-1064-31 — Free Space Window — < 1000 cps
• SPCM-1064-32 — Free Space Window — < 500 cps
• SPCM-1064-30-FC — FC/PC Adaptor — < 1500 cps
• SPCM-1064-31-FC — FC/PC Adaptor — < 1000 cps
• SPCM-1064-32-FC — FC/PC Adaptor — < 500 cps
• SPCM-1064-30-BR1 — Bracket for 1" tube mount — < 1500 cps
• SPCM-1064-31-BR1 — Bracket for 1" tube mount — < 1000 cps
• SPCM-1064-32-BR1 — Bracket for 1" tube mount — < 500 cps
• SPCM-1064-30-BR2 — Bracket for C-Mount — < 1500 cps
• SPCM-1064-31-BR2 — Bracket for C-Mount — < 1000 cps
• SPCM-1064-32-BR2 — Bracket for C-Mount — < 500 cps

Technical specifications

• Wavelength range: optimized for 905 nm to 1064 nm
• Typical single-photon detection efficiency (PDE): ~10% at 1064 nm; >50% from 750 nm to 950 nm
• Active area: 500 µm (provides excellent uniformity)
• Dark count options: variants with <1500 cps, <1000 cps, <500 cps depending on model
• Interface options: Free Space Window, FC/PC adaptor, 1" tube mount bracket (BR1), C-Mount bracket (BR2)
• Retains SPCM-AQRH family features: stable temperature behavior, overload protection, highly linear output
• Designed for detection of weak photon signals in spectroscopy, quantum optics and precision measurement applications
