LED light source X-Cite TETREM™

blueredgreen

Overview

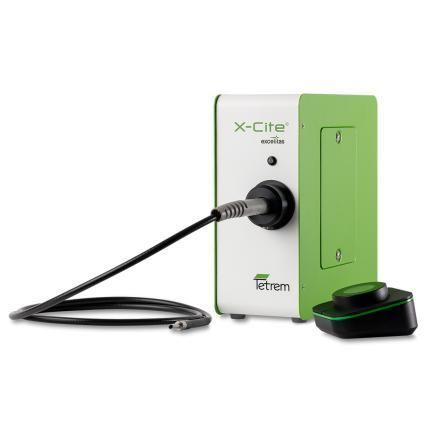

The X-Cite TETREM™ is a compact 4-channel fast-switching LED illumination system designed for fluorescence imaging. Built to provide flexible excitation across commonly used fluorophores, it suits live-cell imaging and upgrades from lamp-based sources. The system includes the X-Cite smartDIAL™ controller for intuitive manual control of channels and intensity.

Design and Operation

• Four spectral bands covering common dyes: DAPI, FITC, mCherry/TRITC and Cy5.
• Two UV LED wavelength options (365 nm or 385 nm) to match DAPI excitation filter preferences.
• Channels operate individually or simultaneously for use with single-band or multi-band filter sets.
• Independent channel control reduces bleed-through with multiband cubes and enables UV-free illumination for reflected-light workflows.
• Per-channel intensity adjustment for optimized excitation and white balance creation.

Controller
The X-Cite smartDIAL controller features large tactile buttons, illuminated channel indicators and an integrated OLED display in the central dial that shows wavelength and intensity for all four channels simultaneously.

Applications

• Fluorescence imaging
• Digital pathology
• Spatial biology
• Structured illumination microscopy (SIM)

Specifications

• Model identifiers: XT640S and XT640L (XT640S uses 365 nm UV option; XT640L uses 385 nm UV option).
• Wavelength range: XT640S = 360–660 nm; XT640L = 380–660 nm.
• LED peaks (nm): XT640S = 365, 475, 555, 635; XT640L = 385, 475, 555, 635.
• External power supply: Universal input 100–240 VAC, 50/60 Hz; 1.85 A max @115 V, 1.0 A max @230 V.
• Power input to X-Cite unit: 24 VDC, 4.0 A.
• LED ON/OFF response times: 100 μs (TTL) / 1 ms (USB).
• Control options: smartDIAL; ON/OFF - TTL compatible; Intensity - Analog; RS-232 commands (SDK available); USB.
• I/O connections: Mini DIN plug, 9 pos (smartDIAL); USB (B-type); DB25 x 8 BNC (4 x TTL, 4 x Analog).
• Dimensions (W x H x D): 95 mm x 230 mm x 212 mm (3.7" x 9.1" x 8.4").
• Weight: 3 kg (6.6 lb).
• Shipping dimensions: 400 mm x 380 mm x 330 mm (16" x 15" x 13").
• Shipping weight: 5.5 kg (12 lb).
• Certifications: CE, RoHS, UKCA, KC.
• Warranty: LEDs – 25,000 hours or 3 years; All other X-Cite TETREM components – 1 year, parts and labor (excluding LLG).
