UV curing system OmniCure® AC5 series

UV LEDfor coatinginkjet

Product overview

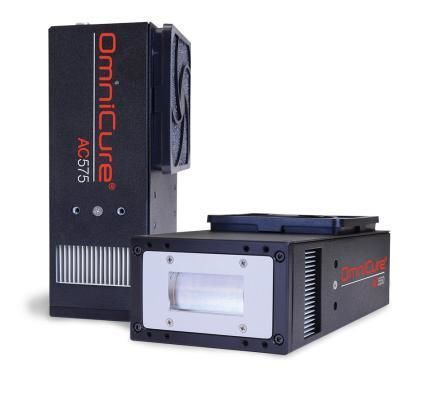

OmniCure® AC5 Series of air-cooled UV LED systems are designed for small area curing. With advanced front-end optics, these high power UV curing systems deliver 14 W/cm2 peak irradiance for fast, even curing. The Series includes the AC550, AC550P, AC575 and AC575P, with the P versions having enhanced optics to optimize the dose for short working distances along with a removable window for easy cleaning to support print applications.

Technology and operation
The AC5 Series utilizes a patented process for individually addressing each LED UV module output to ensure exceptional uniformity over the entire curing area for consistent results. By adapting the output to support the process requirements of the industry, the AC5 Series product portfolio can be applicable for a range of varying applications with different process needs.

Features

• Output power of 14 W/cm2: Offers high speed curing for adhesives, coatings and inks
• Available in standard print versions @ 395 nm: Adapted to support process requirements of bonding, conformal coating and printing industries
• Custom optics: Greater flexibility via high peak irradiance available at longer working distances. Print (P) versions have enhanced optics to optimize dose for short working distances and include a removable window for easy cleaning
• Patented process for addressing individual LED modules: Even and consistent curing through excellent uniformity across the entire LED area
• Air-cooled design: Integrate into workstations with no additional venting, ozone extraction or chillers required
• I/O Port for remote operation: Ability to automate for increased productivity
• Highly-efficient LED modules: Reduced power consumption compared to arc lamp systems
• Compact size: Easily integrated into any workstation
• 20,000 hour typical lifetime: Reduced running costs compared to arc lamp solutions
• Narrow wavelength output of LED: Lower temperature curing than arc lamps, increasing yields of parts

Technical data / Specifications

• Series / Model: OmniCure® AC5 Series (AC550, AC550P, AC575, AC575P)
• LED Peak Wavelengths: 395 nm ± 5 nm
• Active Optical Area: AC550 / AC550P = 50 x 25 mm; AC575 / AC575P = 75 x 25 mm
• Typical Peak Irradiance (W/cm2) at 395 nm (at 100% intensity setting): 1 mm = 14; 5 mm = 12.6; 10 mm = 10.6; 15 mm = 9.0; 20 mm = 7.7; 25 mm = 6.7
• Optical Power: AC550 / AC550P = 123 W; AC575 / AC575P = 184 W
• Power Consumption*: AC550 / AC550P = 330 W; AC575 / AC575P = 480 W
• Longitudinal Uniformity*: Better than ± 10%
• Operating Voltage: 48 V DC ± 2 V
• Dimensions (L x W x H): 110 x 68 x 190 mm
• Weight: 1.1 kg
• Cooling: Air (air-cooled design)
• Acoustic Noise: < 65 dB
• Life Expectancy: > 20,000 hours
• Automation: Integrated PLC controls for UV
• LED Warranty: 2 years or 10,000 service hours
• Notes: *At 100% intensity setting
