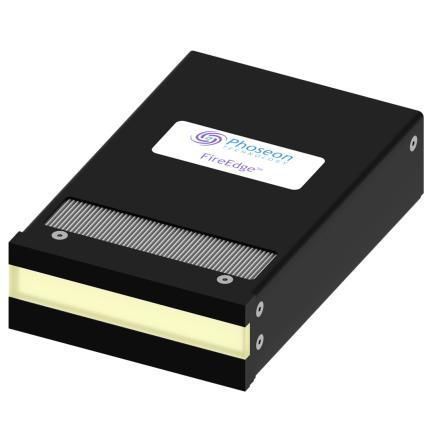

UV LED curing system FireEdge™ FE400

for coatingair-cooledinkjet

Product Overview
The FireEdge™ FE400 air-cooled UV LED curing system provides flexible, compact curing for small-area applications. It delivers high UV power with built-in intensity control for both pinning and full-cure processes. Patented TargetCure™ technology ensures predictable, stable UV output, while the scaling feature allows multiple units to be mounted end-to-end for contiguous, uniform irradiation. WhisperCure™ technology reduces operating noise in a compact footprint.

Extended Description
The FireEdge FE400 is a compact, cost-effective, air-cooled LED light source designed for pinning and curing of inks, coatings and adhesives. It offers long lifetime, low maintenance and stable output suitable for digital inkjet and screen printing workflows.

Features

• Built-in intensity control options supporting pinning and full cure
• Patented TargetCure™ technology for precise and predictable UV output
• Scaling feature: multiple units can be stacked end-to-end for contiguous, uniform output
• WhisperCure™ technology for quieter operation
• Compact, air-cooled design with long lifetime and low maintenance
• Peak Irradiance: 8 W/cm² at 385, 395, 405 nm

Applications

• Digital inkjet printing (pinning & full cure)
• Adhesives
• Coatings
• Screen printing

Specifications (table)
Wavelength groups: 365 nm; 385, 395, 405 nm
Peak Irradiance*: 365 nm — 4 W/cm²; 385/395/405 nm — 8 W/cm²
Emitting Window (mm): 80x10; 120x10; 160x10; 180x10; 240x10
48Vdc Power In (Typical) for 365 nm (by emitting window): 80x10 = 85W (1.8A); 120x10 = 130W (2.7A); 160x10 = 170W (3.6A); 180x10 = 195W (4.0A); 240x10 = 255W (5.3A)
48Vdc Power In (Maximum) for 365 nm (by emitting window): 80x10 = 95W (2.0A); 120x10 = 145W (3.0A); 160x10 = 190W (4.0A); 180x10 = 215W (4.5A); 240x10 = 285W (6.0A)
48Vdc Power In (Typical) for 385/395/405 nm (by emitting window): 80x10 = 130W (2.7A); 120x10 = 200W (4.2A); 160x10 = 265W (5.6A); 180x10 = 295W (6.2A); 240x10 = 395W (8.3A)
48Vdc Power In (Maximum) for 385/395/405 nm (by emitting window): 80x10 = 145W (3.0A); 120x10 = 220W (4.6A); 160x10 = 295W (6.2A); 180x10 = 330W (6.9A); 240x10 = 440W (9.2A)
*Peak Irradiance is expected to drop by 10% after replaceable cover glass is mounted.

Technical specifications

• Model family: FireEdge™ FE400
• Wavelength options: 365 nm; 385 nm; 395 nm; 405 nm
• Peak irradiance: up to 8 W/cm² (385/395/405 nm), 4 W/cm² (365 nm)
• Emitting window sizes (mm): 80x10, 120x10, 160x10, 180x10, 240x10
• Power input (48Vdc) typical and maximum vary by emitting window and wavelength (examples provided above)
• Technologies: TargetCure™ (process stability), WhisperCure™ (quieter operation)
• Cooling: air-cooled
• Primary use cases: pinning and full curing of inks, coatings, adhesives; suitable for digital inkjet, screen printing
