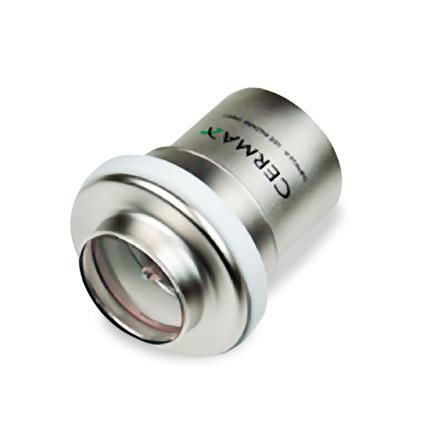

Xenon bulb Cermax VQ

compactinfraredhigh-power

Overview
Cermax VQ metal-body parabolic Xenon lamps are designed for medical lighting applications requiring stable color rendering and a compact optical source. The VQ series delivers a broad spectral output suitable for visible, UV and IR use and is commonly applied in surgical and diagnostic illumination systems.

Product details
Cermax VQ Xenon lamps are short-arc, metal-body lamps with an integrated parabolic reflector and metal-to-sapphire and ceramic seal construction. The compact reflector-body design provides a small, collimated, high-intensity source that offers flexibility for downstream optics and beam shaping in medical luminaires.
Output filtering can be applied to select visible, UV (<390 nm) or IR (>770 nm) bands depending on application requirements. Standard Cermax parabolic reflector metal-body lamps operate in the 300–400 W range with a common nominal power of 300 W.

Specifications (table)
Reflector Type: Parabolic
Body Type: Metal
Total Visible Output: 5500 Lumens
Power - Nominal: 300 Watts
Power - Range: 275-325 Watts
Current - Range: 17-23 Amps (DC)
Minimum Ignition Voltage: 23 kilovolts (system dependent)
Operating Voltage - Nominal: 13.5 Volts (DC)
Operating Voltage - Range: 12-15 Volts (DC)
Lifetime: 1000 hours typical
Maximum Temperature: 150° C
Radiant Output: 75 Watts
UV Output (<390 nm): 4.0 Watts
IR Output (>770 nm): 37 Watts

Technical features

• Short-arc Xenon lamp with integrated parabolic reflector
• Metal-body construction with metal-to-sapphire and ceramic seals
• Compact, collimated light source suitable for medical illumination systems
• Selectable visible, UV or IR output via filtering
• Nominal power 300 W (range 275–325 W), typical life 1000 h
• Minimum ignition voltage 23 kV (system dependent)
