Electric radiant heater

cable poweredindustrialoutside

Product Description

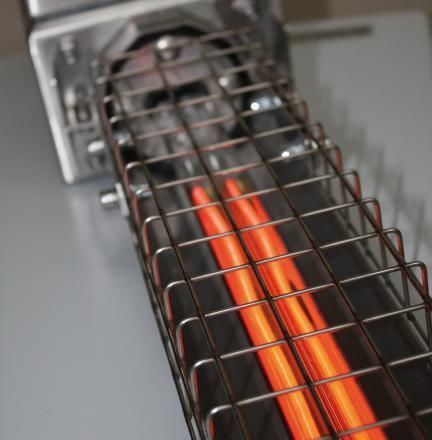

Noblelight IP65 infrared emitters provide controlled, contactless medium-wave heat transmission with dust- and splash-proof protection. The emitter envelope is made of shock-resistant quartz glass suitable for outdoor and wet environments, while electrical connections are routed to a terminal box via a dedicated sealing. The design has been tested in accordance with VDE 0710 / DIN40050 to ensure IP65 protection.

Construction and Design
The IP65 emitters incorporate protective housings that enclose electrical connections and conductive components with a specialized sealing system to prevent ingress of dust and moisture. Housing, reflector and removable protective grating are manufactured from 304-grade stainless steel to withstand outdoor and wet-area industrial use.

Features

• Infrared heating engineered for wet or dusty environments
• Energy-efficient medium-wave infrared technology
• Contactless heating for uniform heat distribution

Specifications
Type of protection: Inspected in accordance with VDE 0710 / DIN40050
Wavelength: Medium-wave
Ends: With extended unheated ends to reduce thermal stress
Length: Heated length from 300 mm (configurable)
Output: Up to 20 W/cm

Applications

• Winter de-icing of air filters, tracks or outdoor equipment
• Greenhouses with water spraying and humid environments
• Processes requiring regular wet cleaning of radiation sources (anti-icing and outdoor industrial heating)

Customization and Options
Excelitas offers modular IP65 system configurations including medium-wave emitters with heated lengths starting at 300 mm, extended unheated ends, output options up to 20 W/cm and sealed terminal-box wiring. Systems include stainless-steel housings with integrated reflectors and can be customized for wavelength, output intensity, heated lengths, mounting arrangements, reflector designs and integration with automation or control systems.

Technical specifications

• Protection rating: IP65 (VDE 0710 / DIN40050 inspected)
• Wavelength range: Medium-wave infrared
• Heated length: from 300 mm (configurable)
• Output power: up to 20 W/cm
• Ends: extended unheated ends to reduce thermal stress
• Materials: 304-grade stainless steel housing, reflector and removable protective grating
• Emitter envelope: shock-resistant quartz glass
• Electrical connection: routed to terminal box via special sealing for dust- and splash-proof operation
• Suitable for outdoor and wet-environment applications
• Typical uses: anti-icing, de-icing, greenhouse and outdoor industrial heating
