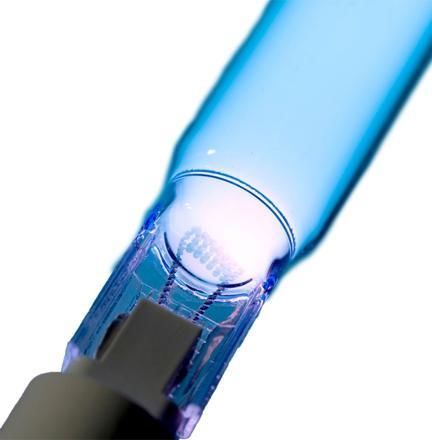

Tubular bulb Noblelight

UV50 W55 W

Overview
Noblelight amalgam UVC lamps use long-life amalgam technology to provide high, stable UVC output for industrial disinfection and oxidation applications. They deliver up to ten times the UVC power density of conventional low-pressure mercury lamps and operate reliably at ambient temperatures up to 90°C, with resistance to temperature fluctuations.

Longlife Technology
The Noblelight Longlife Technology coating limits emission loss and discoloration. Compared with uncoated low-pressure lamps that may fall to 50% output after 8,000 h, amalgam lamps with the coating maintain up to 90% UVC output after 16,000 h, reducing downtime and replacement intervals.

Safety Note
These lamps contain mercury and must be handled and disposed of in accordance with applicable local, state or federal regulations.

Specifications
Columns: Ozone-free | Ozone-generating
Spectrum: Wavelength: 254 nm | 185 nm, 254 nm
Arc length: 25 – 200 cm | 25 – 200 cm
Electrical power: 50 – 1000 W | 50 – 1000 W
Typical UV efficiency at 254 nm: 35% | -
Typical efficiency at 185 nm, synthetic quartz glass: - | 10%
Specific UVC flux: 0.6 – 1.5 W/cm | 0.6 – 1.5 W/cm
Service life: 16,000 h | 10,000 h

Features

• Operates at high ambient temperatures (up to 90°C)
• Resistant to temperature fluctuations
• Energy-efficient
• Low-cost alternative to medium-pressure lamps
• Highest power density among low-pressure lamps
• Produces minimal heat

Applications

• Disinfection of water (municipal drinking water, sewage treatment plants, air-conditioning)
• Reduction of pollutants in industrial exhaust air
• Decomposition/reduction of air pollutants
• Grease and odor control for food service kitchens

Integration & Maintenance
Designed for compatibility with a wide range of disinfection and oxidation equipment; suitable for retrofit into existing reactors or OEM integration. Routine maintenance: regular cleaning of quartz sleeves to prevent fouling, operate within specified temperature ranges, use compatible electronic ballasts, and follow replacement schedules to sustain UVC output.

Technical specifications

• Brand line: Noblelight amalgam UVC lamps
• Wavelength (ozone-free): 254 nm
• Wavelength (ozone-generating): 185 nm and 254 nm
• Arc length: 25 – 200 cm
• Electrical power range: 50 – 1000 W
• Typical UV efficiency at 254 nm: 35% (ozone-free)
• Typical efficiency at 185 nm (synthetic quartz): 10% (ozone-generating)
• Specific UVC flux: 0.6 – 1.5 W/cm
• Service life (ozone-free): 16,000 h
• Service life (ozone-generating): 10,000 h
• Operating ambient temperature capability: up to 90°C
• Contains mercury — disposal must follow applicable regulations
