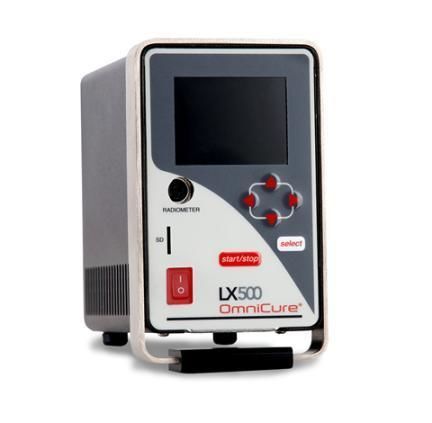

UV exposure controller OmniCure LX500®

Overview
The OmniCure LX500 UV LED spot curing system controller integrates Intelli-Lamp technology to monitor LED head temperature and lifetime while automatically maintaining optical output within ±5% for stable, repeatable processes. Available in 2- or 4-channel configurations, the LX500 controls up to four interchangeable UV LED heads simultaneously or independently at 365 nm, 385 nm, 395 nm and 405 nm. Updated electronics support OmniCure V3 high‑power LED heads delivering up to 27 W/cm² irradiance and up to 1,100 mW optical power; the widened voltage range enables support for custom wavelength heads.

Key features

• Multiple wavelengths at high irradiance: 17 W/cm² @365 nm (750 mW); 28 W/cm² @385 nm (1,050 mW); 27 W/cm² @395 nm (1,085 mW); 24 W/cm² @405 nm (1,075 mW)
• Precise intensity control: 5–100% range with 1% increments for consistent, repeatable UV processes
• Intelli-Lamp LED monitoring: LED head temperature and lifetime data with automatic optical stability control (±5%)
• Simultaneous or independent control of up to four UV LED heads: flexible production layouts from a single controller
• Micro SD card interface: quick programming of single or multiple controllers and automatic logging of exposures and faults
• LED head temperature display: real‑time monitoring to optimize performance and extend head lifetime
• StepCure multi‑phase programming: customized staged cure profiles programmable from the controller or PC
• High energy efficiency: approximately 75% lower energy consumption versus typical UV arc‑lamp systems
• Compact, robust design: suited to dense and industrial manufacturing environments; no additional cooling required for standard operation
• Intuitive front panel: 4‑way membrane control for fast setup and operation
• Certifications: CE and RoHS compliant

Specifications

• Model: OmniCure LX500
• Channels: 2 or 4 configurable channels
• Supported wavelengths: 365 nm, 385 nm, 395 nm, 405 nm
• Max irradiance (with V3 heads): up to 27 W/cm²; optical power up to 1,100 mW
• Irradiance by wavelength: 17 W/cm² @365 nm (750 mW); 28 W/cm² @385 nm (1,050 mW); 27 W/cm² @395 nm (1,085 mW); 24 W/cm² @405 nm (1,075 mW)
• Intensity control: 5–100% with 1% increments
• Controls & interfaces: 4‑way membrane front panel; micro SD card; USB for PC; optional foot pedal or PLC
• Controller dimensions: 5.5" H x 3.5" W x 5.5" D
• Power consumption: 72 W max @ 120 VAC
• Operating range: 5°–35°C, 85% RH max (no condensation)
• Storage range: -10°–60°C, 85% RH max (no condensation)
• Certifications & warranty: CE, RoHS; 1 year warranty
