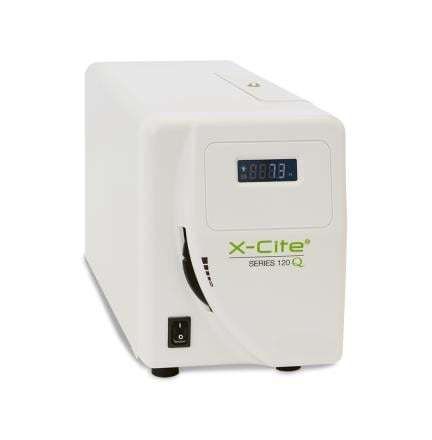

Lamp light source X-Cite® 120Q

mercury vapor lampUVvisible

Overview
The X-Cite 120Q provides high spectral excitation and uniform wide-field fluorescence illumination across the sample surface. Designed with Intelli-Lamp® technology to maintain optimal lamp temperature and automatically log operating hours, the X-Cite 120Q extends lamp lifetime. The 120 W short-arc mercury lamp is prealigned for simple one-step replacement. An optional adjustable iris with five settings lets users tune illumination intensity to optimize sample imaging and minimize fluorophore photobleaching. The system is suited for routine assays and multi-user laboratory installations.

Notice
The mercury (Hg) lamp contains mercury; lamps must be disposed of in accordance with applicable waste management laws and regulations.

Main features

• Intelli-Lamp® technology for temperature control and automatic runtime logging.
• Exclusive 120 W short-arc mercury lamp, prealigned for easy replacement.
• Optional 5-position adjustable iris to reduce photobleaching and optimize illumination intensity.
• Liquid light guide optical design for microscope coupling; remote placement reduces heat and vibration transfer to the microscope.
• Overheat monitoring via Intelli-Lamp that prevents restart until the lamp cools.
• Optical adapters specifically designed and tested to optimize intensity and illumination uniformity for each microscope model.
• Integrated safety features (safety interlocks, light shields) and compliance with applicable international laboratory equipment standards.

Technical specifications

• Includes: X-Cite 120Q — lamp module, liquid light guide with adapter, grounded shielded power cord, user guide. X-Cite 120PC Q — lamp module, liquid light guide with adapter, software CD, grounded shielded power cord, 9-pin serial cable, user guide and quick-start guide.
• Lamp: Exclusive 120 W short-arc mercury vapor lamp.
• Lamp life: 2000 hours guaranteed, 2500 hours average.
• Power supply: High-efficiency switching mode, isolated line, 90–264 VAC, 47–63 Hz, universal input.
• Warm-up time: 90 seconds (typical).
• Panel controls: X-Cite 120Q — power switch, intensity adjustment (if applicable). X-Cite 120PC Q — power switch, mode selection, high/low setting, on/off.
• Panel display: X-Cite 120Q — total lamp runtime and lamp status messages. X-Cite 120PC Q — iris settings (100%, 50%, 25%, 12%, 0%), total lamp runtime, exposure time (0.2 to 999.9 s), lamp-on indicator, shutter open indicator, lamp warm-up, lamp and shutter status messages.
• Weight: X-Cite 120Q — 6.7 lb (3.04 kg); X-Cite 120PC Q — 7 lb (3.18 kg).
• Dimensions (L x W x H): 13.5 x 5.5 x 6.5 in (34.5 cm x 14 cm x 16.5 cm).
• Global certifications: CE marked, certified to applicable Canadian and US IEC standards.
• Warranty: 1 year (excluding lamp and liquid light guide).
