Lamp light source EL09 series

discharge lampultravioletUV

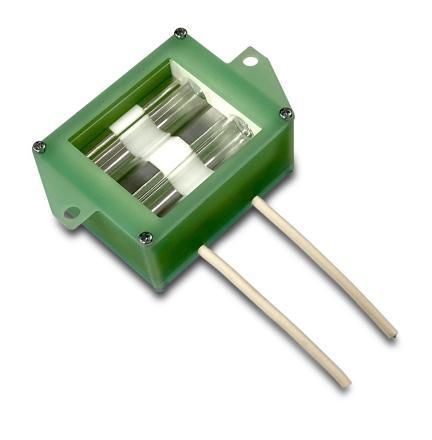

Overview Excelitas Excimer Modules encapsulate excimer lamps with an integrated reflector, transverse discharge and external electrodes to maximize lamp lifetime. Modules are offered in a rugged modular form factor. Custom sizes are available: smaller modules support prototyping, tiling or small work areas, while larger modules enable disinfection of larger areas with fewer power supplies.Features222 nm narrow-band wavelength is described as eye safe and effective for microbial disinfectionModule geometry emits uniformly in a single plane for directional or surface treatmentsAvailable in standard sizes or customizable to specific form factors and applicationsLong operating lifetimes, typically quoted in the thousands of hoursDocumentation (available datasheets)EL09-50 — module excimer lamp datasheetEL09-E — module excimer lamp datasheetTechnical specificationsWavelength: 222 nm narrow-band excimer emissionSafety: 222 nm emission described as eye safe (narrow band)Optical: Integrated reflector to maximize usable outputDischarge technology: Transverse discharge with external electrodesEmission geometry: Uniform emission in a single plane for directional/surface treatmentMechanical: Rugged modular design; customizable form factors and sizesApplications: Prototyping, tiling, small work areas, larger-area disinfection with fewer power suppliesLifetime: Long operating lifetimes quoted in the thousands of hoursAvailable models referenced: EL09-50, EL09-E
