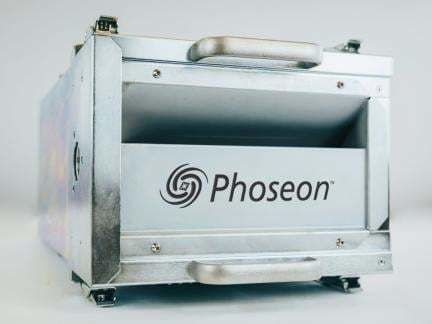

UV LED curing system Phoseon F series

UVfor coatinghigh-performance

Product Overview
The Phoseon 8th-generation Fiber UV LED Curing System provides circumferential UV exposure for coating cure on glass fibers. The system combines a fiber-optimized UV LED source with a patented three-part reflector assembly to increase irradiance at the fiber and enable higher processing speeds.

Detailed Description
The system integrates a high-intensity UV LED emitter and a Fiber Reflector Unit (FRU) that directs UV energy around the full circumference of the fiber. The UV LED source and FRU are installed in an IP52 enclosure to protect against liquid spills. The air-cooled FJ228 includes WhisperCure™ and TargetCure™ technologies for controlled output and quiet operation; water-cooled FP300 variants offer higher peak irradiance and cooling capacity. The FRU supports mounting for irradiance monitoring systems, and the enclosure provides integrated hardware for straightforward retrofit onto existing towers.

Features

• Peak Irradiance: Up to 30 W/cm²
• Cooling: Air- or water-cooled configurations
• Three-part reflector assembly increases irradiance at the fiber for faster process speeds
• UV energy focused in a tight cylindrical zone around the fiber
• Ultra-high-speed curing suitable for continuous fiber processing
• IP52 enclosure protects system from liquid spills

Applications

• Fiber optics coating cure
• Electrical and structural wire processing
• Smart fabrics and technical textiles

Specifications
Wavelength — FJ228: 365 nm; 385, 395 nm — FP300: 365 nm; 395 nm
Peak Irradiance — FJ228: 10 W/cm²; 25 W/cm² — FP300: 12 W/cm²; 30 W/cm²
Emitting Window (mm) — FJ228: 225 x 20 — FP300: 225 x 20
48V Power In (Max) — FJ228: 1000 W / 25 A; 2064 W / 43 A — FP300: 1500 W / 32 A; 1920 W / 40 A
Cooling Capacity (Typical) — FP300: 1233 W
Cooling Capacity (Max) — FP300: 1425 W
Water Flow Rate (Min) — FP300: 6 LPM
Pressure Drop (Typical) — FP300: 0.19 Bar

Technical specifications

• Model family: Phoseon Fiber Curing System (8th generation)
• IP rating: IP52 enclosure (protection against liquid spills)
• Integrated technologies: WhisperCure™ and TargetCure™
• Mounting: FRU includes mount for irradiance monitoring; enclosure includes integrated retrofit hardware
• Cooling options: Air-cooled or water-cooled configurations
• Peak irradiance: up to 30 W/cm² (depending on model/variant)
• Emitting window: 225 x 20 mm
• Water flow (min) for water-cooled variants: 6 LPM
• Typical pressure drop (water-cooled variants): 0.19 Bar
