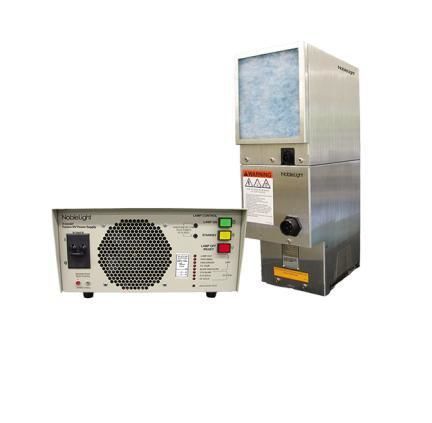

UV curing system F300

microwavefor coatingair-cooled

Overview
The F300 Series is a compact microwave-powered electrodeless UV curing system with a 6-inch (15 cm) irradiator module and integrated power supply. Designed for laboratory research, pilot lines and simpler production processes, the modular 300 W/in (120 W/cm) units can be combined to cover wider cure widths and are compatible with common benchtop and floor-standing conveyors.

Safety Note
Lamps contain mercury. Manage in accordance with local, state or federal disposal laws.

Features

• Electrodeless microwave-powered lamp: fast start/restart and long useful life
• Compact 6-inch modular irradiator for flexible installation
• Optional integral blower for simplified cooling and installation where external ducting is impractical
• Simple, intuitive indicator lights and controls for lab and pilot operation
• Lower heat transfer to substrate compared with traditional mercury arc lamps, suitable for heat-sensitive materials
• Modular design allows multiple units to be combined for greater cure width
• Compatible with LC6B benchtop and DRS 10/12 floor-standing conveyors

Applications

• Adhesive bonding and assembly
• Automotive component curing and coating
• Metal and glass decorating/coating
• Medical device marking and coating
• Electronic component processing
• Plastic decorating and surface finishing

Specifications
Lamp bulb length: 15 cm
Power class: 300 W/in (120 W/cm)
Lamp type: Electrodeless microwave-powered lamp (300 W/inch)
Cooling: Optional integral blower available
Compatibility: LC6B benchtop and DRS 10/12 floor-standing conveyors
Device footprint (W x L): 208 x 168 mm
Power setting: Optional fast-restart power setting available
Typical use: Lab research, pilot lines and simpler production processes

Technical specifications

• Lamp bulb length: 15 cm
• Power class: 300 W/in (120 W/cm)
• Electrodeless microwave-powered lamp, 300 W/inch
• Optional integral blower for cooling and simplified installation
• Indicator lights for intuitive operation
• Modular units can be combined for wider cure widths
• Compatible with Fusion UV conveyors (LC6B benchtop, DRS 10/12 floor-standing)
• Device footprint (W x L): 208 x 168 mm
• Optional fast-restarting power setting
• Suitable for lab research, pilot lines and simple production processes
