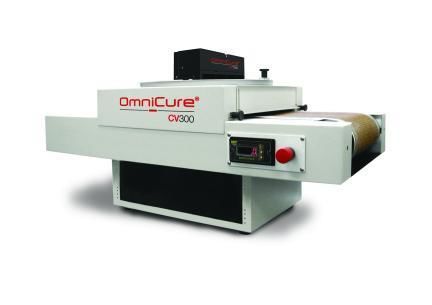

Mesh belt conveyor OmniCure CV300

beltlinearfor materials handling

Overview
The OmniCure CV300 is a versatile conveyor system designed to complement the OmniCure AC Series high-power UV LED curing systems. It is suitable for production, laboratory and R&D applications. The CV300 accepts substrates up to 310 mm (12.2") wide on its open-mesh Teflon®-coated fiberglass belt with an effective curing area up to 300 mm (12") depending on the OmniCure LED system in use.

Design and Operation
The CV300 features a mounting design that supports multiple configurations of OmniCure AC Series LED heads. LED modules can be positioned perpendicular to the belt travel or rotated in 15° increments toward a parallel orientation. Belt speed is adjustable from 1 m/min (3 ft/min) to 14.5 m/min (48 ft/min) in 0.3 m/min (1 ft/min) steps via a digital readout. Safety provisions include light guards, an emergency stop (e-stop) and an interlock to switch off the LED head when the belt stops.

Features

• 305 mm (12") open-mesh Teflon®-coated fiberglass belt: suitable for a range of substrates
• Adjustable speed 1–14.5 m/min (3–48 ft/min) in 0.3 m/min (1 ft/min) increments: precise process control
• Height adjustment between 30 mm and 60 mm in 10 mm steps: accommodates larger parts and variable working distances
• Rotating mounting system: LED heads can be aligned perpendicular to belt travel to increase width coverage
• Rotating mounting system: LED heads can be aligned parallel to belt travel to maximize dose for smaller parts at higher speed

Specifications (table)
Overall Dimensions (LxWxH): 1070 mm (42.2") x 540 mm (21.2") x 440 mm (17.3")
Belt Width: 305 mm (12") open-mesh Teflon®-coated fiberglass
Clearance: 385 mm
Belt Speed: 1 m/min to 14.5 m/min (3 ft/min to 48 ft/min)
Height Adjustment: 30 mm to 60 mm in 10 mm increments
Head Angle Adjustment: 0 to 90 degrees relative to belt travel direction in 15-degree increments
Weight: 34 kg (74 lbs)
Electrical: 100-240 V AC, 50/60 Hz, single phase
Controls: Power on, Speed adjust, LED on

Documentation
Brochure and warranty documentation are available for the OmniCure CV300 (product literature and warranty details).

Technical specifications

• Overall Dimensions (LxWxH): 1070 mm (42.2") x 540 mm (21.2") x 440 mm (17.3")
• Belt Width: 305 mm (12") open-mesh Teflon®-coated fiberglass
• Clearance: 385 mm
• Belt Speed: 1 m/min to 14.5 m/min (3 ft/min to 48 ft/min)
• Speed Increment: 0.3 m/min (1 ft/min)
• Height Adjustment: 30 mm to 60 mm in 10 mm increments
• Head Angle Adjustment: 0 to 90 degrees in 15-degree increments
• Weight: 34 kg (74 lbs)
• Electrical: 100-240 V AC, 50/60 Hz, single phase
• Controls: Power on, Speed adjust, LED on
• Safety features: light guards, emergency stop (e-stop), interlock to turn off LED head when belt is stopped
