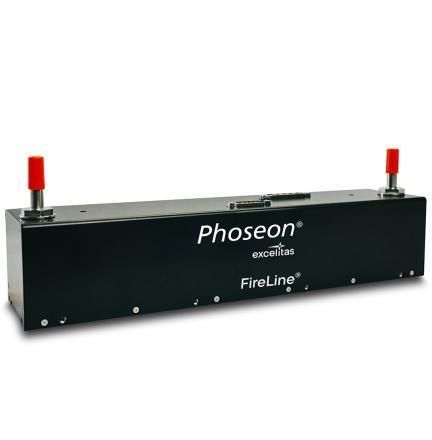

UV curing system FireLine FL400™

UV LEDwith belt conveyorin-line

Product overview
The Phoseon FireLine FL400 UV LED area curing system is a high‑output, water‑cooled solution engineered for demanding industrial printing, coating and adhesive curing on web, conveyor and large‑area processes. It provides scalable emitting lengths and engineered optical uniformity for consistent results in harsh production environments.

Key features

• Designed for digital inkjet printing, coatings and adhesives, including web/conveyor and large‑area curing.
• Scalable emitting windows: 125×20; 150×20; 225×20; 250×20; 300×20 mm.
• Peak irradiance configurations up to 24 W/cm²; additional options at 16 W/cm², 12 W/cm² and 8 W/cm².
• Wavelength options: 365 nm, 385 nm, 395 nm, 405 nm (dependent on configuration).
• Water‑cooled with straight or barbed fittings; chiller capacity and flow rate vary by configuration.
• Enhanced window seal to reduce contamination and maintain optical uniformity.
• IP66‑rated enclosure for operation in harsh industrial environments.
• Optional Modbus TCP support for remote monitoring and high‑speed data exchange.

Documentation (titles only)
Phoseon FireLine FL400 Datasheet (PDF)
Phoseon FireLine FL400 User Manual (PDF)
Modbus TCP Communication Protocols Technical Note (PDF)

Specifications Tables
Table — Wavelengths 385, 395, 405 nm — Peak Irradiance: 24 W/cm² / 20 W/cm²
Emitting Window (mm): 125x20; 150x20; 225x20; 250x20; 300x20
48V Power In (Max) @ 24 W/cm²: 125x20 = 1604 W; 150x20 = 1925 W; 225x20 = 2888 W; 250x20 = 3209 W; 300x20 = 3850 W
Input Current (A) @ 24 W/cm²: 33 A; 40 A; 60 A; 67 A; 80 A
48V Power In (Max) @ 20 W/cm²: 125x20 = 1514 W; 150x20 = 1817 W; 225x20 = 2726 W; 250x20 = 3028 W; 300x20 = 3634 W
Input Current (A) @ 20 W/cm²: 32 A; 38 A; 57 A; 63 A; 76 A
Chiller/Cooler Capacity: 1315 W; 1579 W; 2368 W; 2631 W; 3157 W
Chiller/Cooler Flow Rate: 6 LPM; 8 LPM; 8 LPM; 10 LPM; 10 LPM
Pressure Drop (typical): 0.16 Bar; 0.31 Bar; 0.38 Bar; 0.61 Bar; 0.62 Bar (2.4 psi; 4.6 psi; 5.5 psi; 8.8 psi; 9.1 psi)
DC Power Connector: 3W3 for smaller modules; 5W5 for larger modules

Table — Wavelengths 385, 395, 405 nm — Peak Irradiance: 16 W/cm² / 12 W/cm²
Emitting Window (mm): 125x20; 150x20; 225x20; 250x20; 300x20
48V Power In (Max) @ 16 W/cm²: 125x20 = 1211 W; 150x20 = 1454 W; 225x20 = 2180 W; 250x20 = 2423 W; 300x20 = 2907 W
Input Current (A) @ 16 W/cm²: 25 A; 30 A; 45 A; 50 A; 61 A
48V Power In (Max) @ 12 W/cm²: 125x20 = 909 W; 150x20 = 1090 W; 225x20 = 1635 W; 250x20 = 1817 W; 300x20 = 2180 W
Input Current (A) @ 12 W/cm²: 19 A; 23 A; 34 A; 38 A; 45 A
Chiller/Cooler Capacity: 993 W; 1192 W; 1788 W; 1987 W; 2384 W
Chiller/Cooler Flow Rate: 6 LPM; 6 LPM; 6 LPM; 8 LPM; 8 LPM
Pressure Drop (typical): 0.16 Bar; 0.18 Bar; 0.21 Bar; 0.39 Bar; 0.40 Bar (2.4 psi; 2.6 psi; 3.1 psi; 5.6 psi; 5.8 psi)
DC Power Connector: 3W3 for smaller modules; 5W5 for larger modules

Table — Wavelength 365 nm — Peak Irradiance: 12 W/cm²
Emitting Window (mm): 125x20; 150x20; 225x20; 250x20; 300x20
48V Power In (Max): 125x20 = 909 W; 150x20 = 1090 W; 225x20 = 1635 W; 250x20 = 1817 W; 300x20 = 2180 W
Input Current (A): 19 A; 23 A; 34 A; 38 A; 45 A
Chiller/Cooler Capacity: 745 W; 894 W; 1341 W; 1490 W; 1788 W
Chiller/Cooler Flow Rate: 6 LPM; 6 LPM; 6 LPM; 8 LPM; 8 LPM
Pressure Drop (typical): 0.16 Bar; 0.18 Bar; 0.21 Bar; 0.39 Bar; 0.40 Bar (2.4 psi; 2.6 psi; 3.1 psi; 5.6 psi; 5.8 psi)
DC Power Connector: 3W3 for smaller modules; 5W5 for larger modules

Applications

• Digital inkjet printing, web and conveyor UV curing applications.
• Container screen printing, wood panel coating and other large‑area industrial curing processes.

Technical specifications

• Model: FireLine FL400™ (Phoseon)
• Wavelength options: 365 nm; 385 nm; 395 nm; 405 nm
• Peak irradiance options: up to 24 W/cm²; also available in 16 W/cm², 12 W/cm² and 8 W/cm² variants
• Emitting window sizes: 125×20 mm; 150×20 mm; 225×20 mm; 250×20 mm; 300×20 mm
• Power input: 48 V nominal; max input power varies by configuration (approx. 909 W to 3850 W)
• Input current ranges by configuration (approx. 19 A to 80 A)
• Chiller/cooler capacity and flow rate vary by configuration (approx. 745 W to 3157 W; flow 6–10 LPM)
• Typical pressure drop across cooling: 0.16–0.62 Bar (≈2.4–9.1 psi)
• DC power connector types: 3W3 and 5W5 depending on module size
• Cooling fittings: straight or barbed water fittings
• Enhanced window seal for contamination protection
• IP rating: IP66
• Communications: Modbus TCP supported for remote access and monitoring
