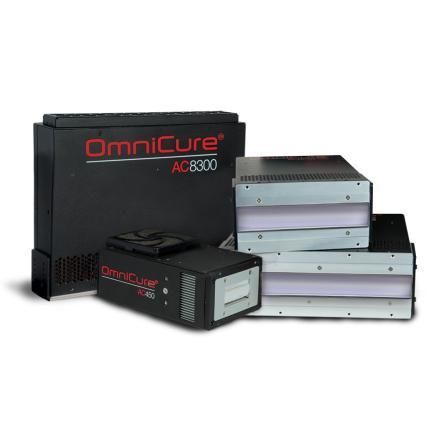

UV LED curing system OmniCure® AC

in-lineair-cooledsurface

Overview
OmniCure AC Series UVC LED Curing Systems use the AC Series platform to deliver high output and uniform irradiance in a compact, modular, air-cooled package. They are scalable and designed for straightforward integration into industrial UV curing lines.

Performance and integration
Built on validated electrical, optical and thermal architectures, the OmniCure UVC LED system provides consistent peak irradiance and longitudinal uniformity to meet the requirements of UV LED curing processes. The modular design supports adjacency to extend the working area.

Surface cure and operational benefits
Adding a UVC LED source to a UVA curing process often resolves surface cure defects encountered when converting from mercury lamps without changing formulations. The OmniCure UVC LED system eliminates the need for inert gas environments, produces no mercury or ozone emissions and reduces maintenance and process complexity.

Specifications
LED Peak Wavelengths: 275 nm
Active Optical Area: From 25 x 225 mm
Peak Irradiance: >1000 mW/cm²
Longitudinal Uniformity: Better than ±10%
Operating Voltage: 48 V DC
Dimensions (L x W x H): 235 x 80 x 218 mm
Weight: From 2.7 kg
Cooling: Air-cooled
Automation: Integrated PLC controls for UV intensity and system alarms
Integration: Multiple mounting configurations; modular design to adjoin and extend working area

Technical specifications

• LED Peak Wavelengths: 275 nm
• Active Optical Area: From 25 x 225 mm
• Peak Irradiance: >1000 mW/cm²
• Longitudinal Uniformity: Better than ±10%
• Operating Voltage: 48 V DC
• Dimensions (L x W x H): 235 x 80 x 218 mm
• Weight: From 2.7 kg
• Cooling: Air-cooled design
• Automation: Integrated PLC controls for UV intensity and system alarms
• Integration: Wide selection of mounting configurations; scalable modular design to adjoin and extend working area
• Environmental/Operational: No mercury or ozone emissions; minimal maintenance required
