Overview

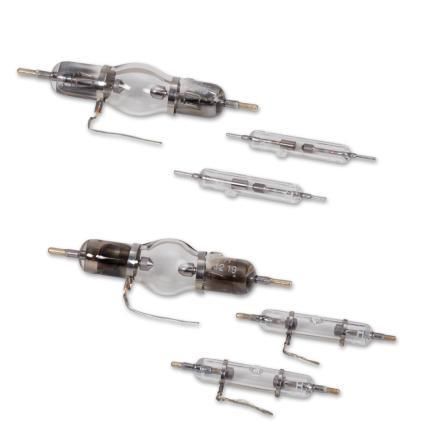

Excelitas stroboscopic flashlamps designed for high repetition-rate stroboscopic use. Available as linear types (arc lengths from 2 mm to >600 mm) and high-power types up to 3000 W. Quartz and borosilicate envelope options are offered depending on UV transmission and ozone generation requirements. Sockets, glass caps and connectors available for assemblies.

Typical applications

• Sport photography
• Machine vision
• Display effect lighting
• Medical
• Architectural lighting

Specifications (selected models)
DGS 0610 | 10 W | Anode V: 280 / 320 / 360 | Dimensions mm: 10 / 30 / 44 / 6.00 / – | Flashes/s: 5–100 | Life: 500 h | Envelope: Q2 | Rec: ZS 1052 / 0.047 µF / 250 V
SG 305 | 25 W | Anode V: 400 / 550 / 600 | Dimensions mm: 40 / 69 / 103 / 8.00 / – | Flashes/s: 5–300 | Life: 250 h | Envelope: Q2 | Rec: ZS 1052 / 0.22 µF / 200 V
SG 304 | 100 W | Anode V: 400 / 600 / 660 | Dimensions mm: 100 / 130 / 160 / 8.00 / – | Flashes/s: 5–100 | Life: 250 h | Envelope: Q1 | Rec: ZS 1052 / 0.22 µF / 250 V
DG 8901–1 | 750 W | Anode V: 360 / 550 / 700 | Dimensions mm: 158 / – / 238 / 10.00 / – | Flashes/s: 2–14 | Life: 500 h | Envelope: Q2 | Rec: ZS 1052 / 0.22 µF / 250 V
EG 9902–1 | 1500 W | Anode V: 480 / 550 / 700 | Dimensions mm: 312 / – / 392 / 10.00 / – | Flashes/s: 2–14 | Life: 500 h | Envelope: Q2 | Rec: ZS 1052 / 0.22 µF / 250 V
FG 9902–1 | 2500 W | Anode V: 600 / 800 / 1000 | Dimensions mm: 457 / – / 537 / 10.00 / – | Flashes/s: 2–14 | Life: 500 h | Envelope: Q2 | Rec: ZS 1052 / 0.22 µF / 180 V
GG 9902–1 | 3000 W | Anode V: 600 / 800 / 1000 | Dimensions mm: 615 / – / 695 / 10.00 / – | Flashes/s: 2–14 | Life: 500 h | Envelope: Q2 | Rec: ZS 1031 / 0.47 µF / 300 V

Glass / envelope notes
* Borosilicate B1: standard glass, suitable for automatic processing; multiple tube diameters available. Borosilicate B2: ~30% higher power capability than B1 but requires manual processing. Quartz Q1: UV transparent. Quartz Q2: reduced ozone generation.

Technical characteristics

• Product family: Stroboscopic flashlamps for high repetition-rate stroboscopic applications.
• Power range: 10 W to 3000 W depending on model.
• Anode voltage: specified per model (min / nominal / max) as listed above.
• Dimensions: given per model as e / g / l / d / a in mm.
• Repetition rate: application-dependent (examples above: small types up to 300 Hz; large types 2–14 Hz).
• Life expectancy: typical values 250 h or 500 h depending on model.
• Envelope materials: Borosilicate (B1, B2) and Quartz (Q1, Q2) with specific processing and optical properties.
• Recommendations: trigger coil and trigger capacitor values and primary trigger voltages are provided per model (e.g., ZS 1052 with 0.22 µF / 250 V).
• Accessories: sockets, glass caps and connectors available for integration into assemblies.
