Xenon bulb PE1200D-13F

compacthigh-power

Description

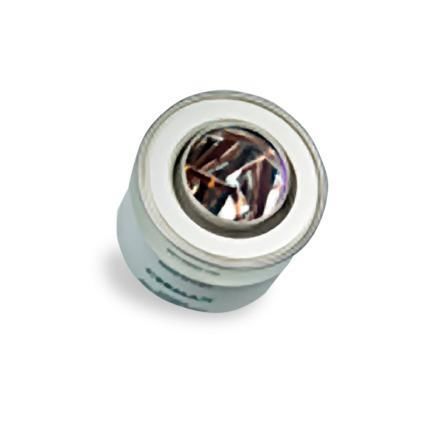

The PE1200D-13F is a 1200 W Cermax® xenon lamp featuring an elliptical reflector and a ceramic body. It delivers high-intensity, broad-spectrum light in a compact design and is intended for industrial and scientific illumination tasks such as wafer inspection, machine vision, solar simulation, spotlights and beacons.

Product highlights
High visible output of 30,000 lumens; nominal power 1200 W (operational range 950–1250 W); color temperature 5900 K; typical lamp lifetime 1,000 hours.

Specifications (summary)
Reflector type: Elliptical, f/1.3
Body type: Ceramic
Total visible output: 30,000 lumens
Power nominal: 1200 W
Power range: 950–1250 W
Current nominal: 63 A (DC)
Current range: 45–70 A (DC)
Ignition voltage: 28 kV (recommended minimum, system dependent)
Operating voltage nominal: 19 V (DC)
Operating voltage range: 17–22 V (DC)
Lifetime: 1,000 hours (typical)
Maximum temperature: 150° C
Radiant output: 273 W
UV output (<390 nm): 14.6 W
IR output (>770 nm): 150 W

Technical specifications

• Model: PE1200D-13F
• Brand: Cermax®
• Nominal power: 1200 W
• Power range: 950–1250 W
• Total visible output: 30,000 lumens
• Color temperature: 5900 K
• Lifetime: 1,000 hours (typical)
• Reflector: Elliptical, f/1.3
• Body type: Ceramic
• Nominal current: 63 A (DC); Range: 45–70 A (DC)
• Ignition voltage: 28 kV (recommended minimum, system dependent)
• Operating voltage: Nominal 19 V (DC); Range 17–22 V (DC)
• Maximum temperature: 150° C
• Radiant output: 273 W
• UV output (<390 nm): 14.6 W
• IR output (>770 nm): 150 W
