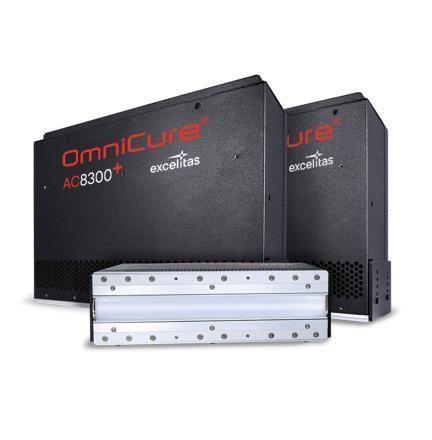

UV curing system OmniCure AC8⁺

UV LEDair-cooledinkjet

Overview
OmniCure® AC8⁺ Series air-cooled UV LED curing systems deliver up to 10 W/cm² peak irradiance with high longitudinal uniformity across large curing areas. Available wavelengths: 365 nm, 385 nm, 395 nm and 405 nm. Standard models use focusing optics for extended working distances; P versions are optimized for high UV dose at short working distances, suitable for print applications.

Scalability and Integration
Multiple LED heads can be joined to scale the curing area while maintaining optical uniformity between heads. The compact air-cooled design with improved heatsink integrates into production lines and workstations without additional venting, ozone extraction or external chillers.

Features

• Up to 10 W/cm² peak irradiance for high-speed curing of inks, adhesives and coatings
• Optimized front-end optics for high peak irradiance and uniformity at varying working distances
• Individual LED module control for superior uniformity across the entire curing area
• Scalable configuration: multiple heads maintain ±5% uniformity between units
• Wavelength options: 365 nm, 385 nm, 395 nm, 405 nm to match application requirements
• Compact air-cooled system; no additional venting, ozone extraction or chillers required
• Efficient LED modules lower power consumption versus arc lamp systems
• Designed for industrial operation; high-efficiency VOC air filters support use in challenging environments
• Estimated LED life > 40,000 hours to reduce running costs compared to arc lamps
• Replaceable outer window and enhanced optics for print-optimized “P” versions
• Narrow wavelength output reduces thermal load and improves yields versus arc lamp systems

General Specifications (table)
FEATURE | SPECIFICATION
Estimated LED Life | > 40,000 hours
Variable Intensity Range | 20 – 100 %
Longitudinal Uniformity | Better than ±5 %
Operating Voltage | 48 V DC ± 2 V
Cooling | Air
Automation | Integrated PLC controls for UV intensity and system alarms
LED Warranty | 2 years or 10,000 service hours (whichever comes first)

Model Performance (table)
MODEL | OPTICAL SIZE (mm) | MAX. POWER CONSUMPTION (W) | OPERATING CURRENT (A) | PEAK WAVELENGTH (nm) | MAX. OPTICAL POWER (W) | PEAK IRRADIANCE (W/cm²) | WEIGHT (kg)
AC8150+, AC8150P+ | 150 x 30 | 1,128 | 23 | 365 / 385 / 395 / 405 | 280 / 350 | 8 / 10 | 2.0
AC8225+, AC8225P+ | 225 x 30 | 1,694 | 34 | 365 / 385 / 395 / 405 | 420 / 525 | 8 / 10 | 2.5
AC8300+, AC8300P+ | 300 x 30 | 2,256 | 45 | 365 / 385 / 395 / 405 | 560 / 700 | 8 / 10 | 3.7

Technical Specifications

• Peak irradiance up to 10 W/cm² with high longitudinal uniformity
• Wavelength options: 365 nm, 385 nm, 395 nm, 405 nm
• Scalable by joining multiple heads while maintaining ±5% uniformity between heads
• Air-cooled system; no external chillers or ozone extraction required
• Operating voltage: 48 V DC ± 2 V
• Variable intensity control: 20–100%
• Estimated LED life: > 40,000 hours
• LED warranty: 2 years or 10,000 service hours
• Available models: AC8150+, AC8150P+, AC8225+, AC8225P+, AC8300+, AC8300P+
