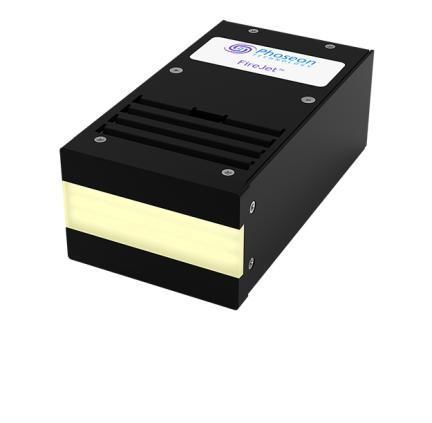

UV curing system FireJet FJ100 Gen2

UV LEDfor coatinghigh-performance

Overview
The Phoseon™ FireJet FJ100 Gen2 is a compact, air-cooled UV LED large-area curing system designed for scalable integration in printing and coating production lines. The unit is self-contained and offered in multiple emitting window lengths to match line geometry and throughput requirements. Control is available via PLC signals for basic functions or via digital interfaces for advanced status and remote control.

Details
The FireJet FJ100 Gen2 balances footprint and irradiance for installations where space is limited but high-intensity curing is required. It integrates WhisperCure™ noise-reduction and TargetCure™ irradiance management to maintain consistent output at low acoustic levels. The system is suitable for UV inkjet curing and coating applications and supports Modbus TCP for high-speed data exchange and remote diagnostics.

Features

• TargetCure™ technology for precise, predictable UV output
• WhisperCure™ technology for reduced operating noise
• Scalable architecture with five available window lengths for integration flexibility
• High peak irradiance options for demanding curing tasks
• Digital and analog control options (PLC signals for instant on/off and intensity control)
• Optional Modbus TCP communication for remote access and high-speed data exchange

Applications

• Digital inkjet printing
• Adhesive curing
• Wood and industrial coatings

Specifications (table 1)
Wavelength: 385, 395, 405 nm
Peak Irradiance: 16 W/cm2; 12 W/cm2
Emitting Window (mm): 75x20, 150x20, 225x20, 300x20, 375x20, 75x20, 150x20, 225x20, 300x20, 375x20
Maximum Fan Capacity: 50 CFM, 100 CFM, 150 CFM, 200 CFM, 250 CFM, 50 CFM, 100 CFM, 150 CFM, 200 CFM, 250 CFM
48V Power In (Max): 576W / 12A, 1104W / 23A, 1632W / 34A, 2160W / 45A, 2640W / 55A, 432W / 9A, 816W / 17A, 1200W / 25A, 1584W / 33A, 1968W / 41A
DC Connector Type: 2W2, 2W2, 2W2, 5W5, 8W8, 2W2, 2W2, 2W2, 2W2, 8W8

Specifications (table 2)
Wavelength: 365 nm (group 1); 385, 395, 405 nm (group 2)
Peak Irradiance: 8 W/cm2
Emitting Window (mm): 75x20, 150x20, 225x20, 300x20, 375x20, 75x20, 150x20, 225x20, 300x20, 375x20
Maximum Fan Capacity: 50 CFM, 100 CFM, 150 CFM, 200 CFM, 250 CFM, 50 CFM, 100 CFM, 150 CFM, 200 CFM, 250 CFM
48V Power In (Max): 288W / 6A, 720W / 15A, 960W / 20A, 1296W / 27A, 1632W / 34A, 240W / 5A, 480W / 10A, 672W / 14A, 912W / 19A, 1152W / 24A
DC Connector Type: 2W2, 2W2, 2W2, 2W2, 8W8, 2W2, 2W2, 2W2, 2W2, 8W8

Additional specification notes
The product is air-cooled and available in multiple emitting window lengths to accommodate integration constraints. Control options include PLC (digital/analog signals) for basic functions and digital protocols for advanced status and control, including Modbus TCP for remote access and data exchange.

Technical specifications

• Model: FireJet FJ100 Gen2
• Brand technologies: TargetCure™ (precise UV output), WhisperCure™ (reduced noise)
• Cooling: Air-cooled
• Available wavelengths: 365 nm; 385 nm; 395 nm; 405 nm
• Peak irradiance options: up to 16 W/cm2, 12 W/cm2, and 8 W/cm2 (depending on configuration)
• Emitting window sizes: 75x20 mm, 150x20 mm, 225x20 mm, 300x20 mm, 375x20 mm
• Maximum fan capacity: up to 250 CFM (varies by configuration)
• 48V input power (max): examples range from ~240W (5A) up to 2640W (55A) depending on configuration
• DC connector types: variations including 2W2, 5W5, 8W8 depending on model
• Control: PLC signals for basic control; digital control and Modbus TCP available for advanced control and remote data exchange
• Typical applications: UV inkjet printing, adhesive curing, wood coatings
