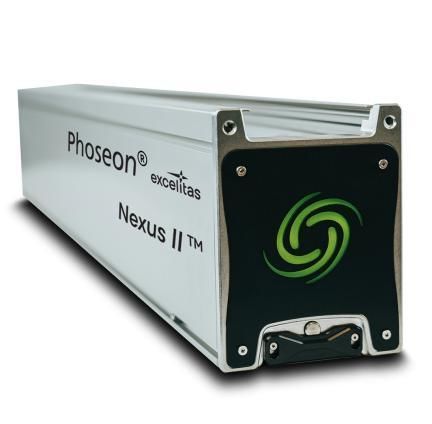

UV LED curing system Nexus II™

UV

Overview
The Phoseon Nexus II water-cooled UV LED curing system is engineered for high-throughput flexographic printing and label & packaging production. Patented thermal management, ValidCure™ verification and TargetCure™ control deliver consistent, measurable curing performance to increase line speeds, maximise press uptime and extend module lifetime.

Details
Nexus II integrates high-power LEDs and patented optics to provide high energy density and uniform curing across large web widths. Water-cooled models cover web widths from 300 mm to 675 mm and deliver 90 W of SLM™ light output energy per 25 mm segment. Systems support real-time remote monitoring via Nexus DataHub and offer significantly longer service life versus conventional units. Phoseon offers a five-year warranty on the complete system.

Features

• High dose: 90 W energy output per 25 mm segment

Applications

• Flexographic printing (labels and packaging)

Specifications

• Wavelength: 395 nm
• SLM™ Light Output Energy per Segment: 90 W
• Max. Web Width (mm): 300, 375, 450, 525, 600, 675
• 120±5V Power In (Max): 2900 W / 24 A; 3575 W / 30 A; 4300 W / 36 A; 5000 W / 42 A; 5700 W / 48 A; 6400 W / 54 A
• Chiller/Cooler Capacity: 2200; 2700; 3250; 3800; 4320; 4850
• Chiller/Cooler Flow Rate: 6 LPM; 6 LPM; 8 LPM; 8 LPM; 10 LPM; 10 LPM
• Pressure Drop (Typical): 0.8 Bar / 26 psi; 1.0 Bar / 26 psi; 1.2 Bar / 26 psi; 1.4 Bar / 26 psi; 1.6 Bar / 26 psi; 1.8 Bar / 26 psi
