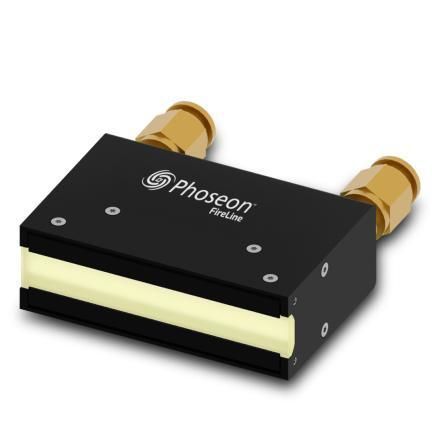

UV LED curing system FireLine™ FL200

UVin-lineindustrial

Product overview
The FireLine™ FL200 is a compact, scalable UV LED area light source that operates with a separate controller. Modules can be combined to match required lengths and deliver a uniform optical output to support consistent curing in constrained or continuous-process installations.

Design and options
The FireLine features push-to-connect water fittings and is offered with either flat or focused lens windows. Available emitting window lengths are 75 mm and 125 mm, making the unit suitable for confined spaces and small substrate widths.

Features

• Compact, scalable UV LED area curing light source (requires separate controller)
• Push-to-connect water fittings
• Flat or focused lens window options
• Emitting window lengths: 75 mm and 125 mm
• Peak irradiance up to 25 W/cm² (dependent on wavelength)

Applications

• Printing
• Coatings
• Adhesives

Specifications (table)
Wavelength: 365 nm | 385, 395, 405 nm
Peak Irradiance: 10 W/cm² | 25 W/cm²
Emitting Window (mm): 75x10 | 125x10 | 75x10 | 125x10
48V Power In (Max): 290W / 6.0A | 480W / 10.0A | 432W / 9.0A | 720W / 15A
Chiller/Cooler Capacity: 235W | 395W | 360W | 540W
Chiller/Cooler Flow Rate: 2 LPM (all configurations)
Pressure Drop: 0.02 Bar / 0.29 psi (all configurations)

Technical specifications

• Model: FireLine™ FL200
• Wavelength options: 365 nm; 385, 395, 405 nm
• Peak irradiance: 10 W/cm² (365 nm), 25 W/cm² (385/395/405 nm)
• Emitting window sizes: 75 x 10 mm and 125 x 10 mm
• 48V power input (max): configurations include 290W / 6.0A; 480W / 10.0A; 432W / 9.0A; 720W / 15A
• Chiller/cooler capacity options: 235W; 395W; 360W; 540W
• Chiller/cooler flow rate: 2 LPM
• Pressure drop: 0.02 Bar / 0.29 psi
• Push-to-connect water fittings
• Lens window options: flat or focused
