Belt conveyor LC series

transportfor materials handlingcompact

Product Overview

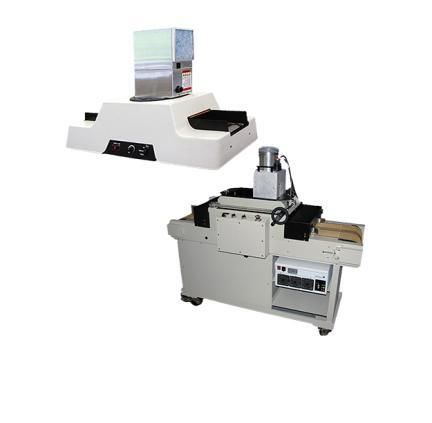

The Fusion UV DRS 10/12 floor-standing conveyors and LC6B/LC6U benchtop conveyors are standard belt conveyor solutions designed for integration with Noblelight microwave-powered UV curing systems. They are intended for formulation testing of UV-curable adhesives, inks and coatings, evaluation of cure response and performance assessment during laboratory R&D, pilot production and short or low-volume production runs.

Details
The compact LC6B and LC6U benchtop conveyors suit laboratory benches and R&D environments while remaining robust enough for pilot plant and production use. Their space-saving footprint and straightforward controls simplify setup and operation. The DRS 10/12 floor-standing conveyors accommodate parts up to 4 inches in height, are specifically designed for Fusion UV microwave-powered UV curing systems and include a built-in exhaust blower to support fume extraction and process control.

Specifications

• Available as benchtop (LC6B/LC6U) and floor-standing (DRS 10/12) belt conveyors
• Compatible with a range of Noblelight microwave-powered UV curing lamps (examples: F300, F600, LH6 Mark II, LightHammer 10, LightHammer 6 Mark II)
• Variable belt speed with digital display: LC6: 0.6 to 76 m/min (2 to 250 fpm); DRS 10/12: five ranges from 0.3 m/min (1 fpm) up to 152.4 m/min (500 fpm)
• UV curing width: LC6 = 6 inches; DRS 10/12 = 10–12 inches

Features

• Compact designs to minimize workspace requirements for benchtop and floor-standing models
• Adjustable lamp height and orientation; easy adaptation to process needs
• Interchangeable compatibility across multiple UV curing systems
• Intuitive digital controls and clear speed readout

Documentation (titles)

• Belt Conveyors for UV Microwave Curing Systems Brochure
• LC6 Benchtop Conveyors for UV Microwave UV Curing Systems Brochure
• DRS 10/12 Floor Standing Conveyors for UV Microwave UV Curing Systems Brochure

Applications

• Formulation testing of UV-curable chemistries in laboratory and R&D
• Pilot manufacturing and low-volume production runs
• Process development, testing and quality control for UV curing applications

Technical specifications

• Models: LC6B and LC6U (benchtop); DRS 10/12 (floor-standing)
• Maximum part height (DRS 10/12): up to 4 inches
• Belt speed (LC6): 0.6 to 76 m/min (2 to 250 fpm)
• Belt speed (DRS 10/12): five ranges from 0.3 m/min (1 fpm) up to 152.4 m/min (500 fpm)
• UV curing width: LC6 = 6 inches; DRS 10/12 = 10–12 inches
• Compatibility: designed for use with Noblelight microwave-powered UV curing lamps (examples: F300, F600, LH6 Mark II, LightHammer 10, LightHammer 6 Mark II)
• DRS 10/12 includes built-in exhaust blower
• Adjustable lamp height and orientation; variable belt speed with digital display; intuitive controls
