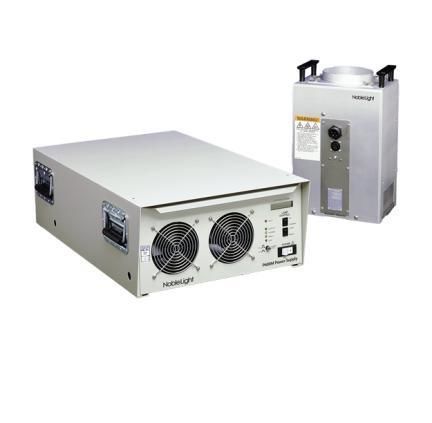

Microwave curing system F600

UVinfraredfor coating

Overview
The Fusion UV F600 Series is a modular microwave-powered, electrodeless UV curing system designed for continuous industrial production. The system features a 10-inch irradiator module paired with a microprocessor-controlled power supply offering two power levels (160 or 240 W/cm). Microwave excitation eliminates electrode wear, delivering consistent UV output and extended lamp life. Irradiators can be combined end-to-end to form virtually any lamp length and provide uniform exposure for web and part-processing applications.

Safety Notice

• Lamps contain mercury. Handle and dispose of lamps in accordance with applicable local, national or federal regulations.

Key Features

• High peak irradiance for faster production speeds
• Microprocessor control with OLED display for real-time status and diagnostics
• Two selectable power settings for process flexibility (160 / 240 W/cm)
• USB port for quick firmware updates and configuration
• EEPROM fault logging (stores last 10 faults) and front-panel troubleshooting
• Reduced infrared output for safer processing of heat-sensitive substrates
• RoHS compliant
• Simple bulb change to select popular emission spectra

Applications

• Adhesive bonding and curing
• Automotive component coating and finishing
• Web converting and coatings
• Metal and glass decorating/coatings
• Medical device coating and marking
• Electronic and optical component coatings
• Plastic decoration and functional coatings

Design & Integration Notes
The F600 Series is modular and scalable for integration into conveyor lines or custom fixtures. Adequate ventilation and a remote air-cooling system are required to maintain lamp temperature. Installers must provide sufficient clearance, correct power input and UV shielding for safe operation. Integration support, custom light shields and engineering guidelines are available upon request.

Technical specifications

• Lamp bulb length: 25 cm
• Power class: 240 W/cm (600 W/in)
• Power settings: two levels, 160 or 240 W/cm
• Device footprint (W x L): 206 x 267 mm
• Includes necessary cable assemblies and RF leak detector assembly
• Modular design allows combination to cure wider widths or complex surfaces
• Compatible with DRS 10/12 floor-standing conveyors
