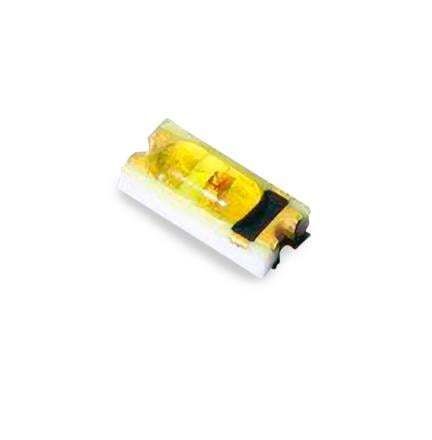

Broadband LED array CERLED®

SMD

Overview CERLED® was patented in 1979 as the world’s first Surface Mounted Device (SMD) LED. Excelitas offers an extensive range of standard CERLED products across the UV, visible and infrared spectra. The CERLED family includes LEDs on a ceramic substrate with high thermal conductivity, as well as CERLED phototransistors, photo-PIN diodes and wavelength-selective photodiodes.

Point Light LED The Excelitas CERLED Point Light LED provides a small-area light source for applications that do not require a large emitting surface. Key characteristics include homogeneous light output, a wide viewing angle and a light-emitting area of approximately 50 microns.

Typical applications

• Medical lighting and sensor applications
• Architectural, task and specialty lighting
• Machine vision
• Safety lighting – transportation, aerospace, signaling and more

Related families The ACULED® family of Chip-On-Board (COB) products offers configurations of up to four different wavelength LEDs or combinations of LEDs and sensor chips for integrated solutions.

Technical specifications

• Solid-state ceramic chip
• Surface-mount device (SMD)
• High thermal conductivity substrate
• Superior light uniformity
• End-to-end and side-to-side stackable design
