Voltage monitoring system AIMS®

performancepowercurrent

Overview
The AIMS® (Advanced Intelligent Monitoring System) provides real-time performance monitoring and centralized diagnostics for LightHammer® Mark II and Mark III microwave UV curing installations. Designed for industrial production lines, AIMS® supports Industry 4.0 data acquisition and helps reduce downtime through proactive alerts and maintenance tracking.

Core functionality
AIMS® acquires and displays critical operating parameters from connected LightHammer® UV curing systems in configurable dashboard formats (graph, gauge, summary). Operators and process engineers can monitor live data on a PC, receive email alerts for warnings and faults, and track consumable part lifecycles for maintenance planning. The system supports simultaneous monitoring of up to 30 LightHammer® 10 Mark II/Mark III power supplies.

Features

• Real-time production monitoring to support process control and product consistency.
• Support for up to 13 primary irradiators in Primary/Secondary mode and up to 30 power supplies via user-friendly software.
• Logging of 24–36 selectable system metrics (including magnetron current and voltage, photocell voltage, component operating hours) with 15, 30 or 60-second intervals.
• On-screen display of up to six user-selectable metrics simultaneously (graph, gauge, or summary/table views).
• Configurable email alerts for warnings/faults and scheduled summary reports.
• Remote access and multi-plant comparison capabilities depending on IT infrastructure.
• Preventive maintenance support with operating-hours tracking for magnetrons, bulbs and reflectors to minimize downtime and scrap.

Documentation
A brochure is available: AIMS Real-time Performance Monitoring for Microwave UV Curing Systems Brochure.

Applications

• Adhesive bonding
• Automotive components
• Converting web coatings
• Metal decorating and coating
• Glass decorating
• Medical device marking and coating
• Electronic components
• Plastic decorating
• Optical fiber coating

Additional details
AIMS® delivers detailed data visualization through customizable dashboards. Each recorded data point can include minimum, maximum, mean and standard deviation values. The system can generate a timestamped data file daily and optionally email files automatically. From a single curing head to a fully networked array, AIMS® provides a unified interface for metric tracking and streamlined diagnostics across the entire installation.

Caractéristiques / spécifications techniques

• Model name: AIMS® (Advanced Intelligent Monitoring System)
• Intended for: LightHammer® Mark II and Mark III microwave UV curing systems (supports LightHammer® 10 Mark II/Mark III)
• Maximum monitored units: up to 30 UV power supplies; up to 13 primary irradiators in Primary/Secondary mode
• Supported metrics: 24–36 system metrics including magnetron current and voltage, photocell voltage, operational life/hours of magnetrons, bulbs and reflectors
• Logging intervals: 15, 30 or 60 seconds
• On-screen display: up to six user-selectable metrics simultaneously (graph, gauge, summary/table views)
• Recorded data: includes min, max, mean and standard deviation per data point
• Data files: new timestamped data file created daily; configurable automatic emailing of files
• Remote/centralized capabilities: compare data across multiple plants depending on IT infrastructure

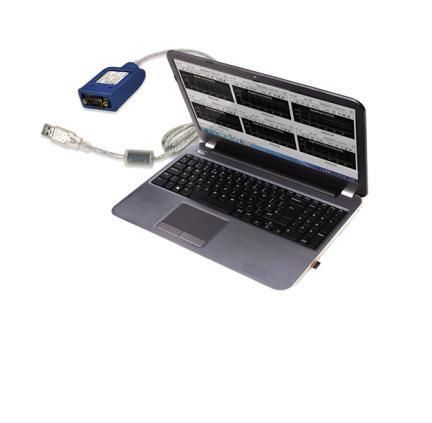

• Included hardware in kit: USB hardware module (dongle), DeviceNet™ adapter cable, DeviceNet™ T-connector, USB drive with software and manual
• Power: module powered via PC USB port (no external power required)
• PC system requirements: Windows® 8; 4 GB RAM for 32-bit systems or 8 GB RAM for 64-bit systems; dual-core 2 GHz processor or higher recommended; display resolution at least 1024 × 768 (17-inch widescreen recommended)
• Scalability: designed for multi-unit installations and centralized performance monitoring across complex curing lines
