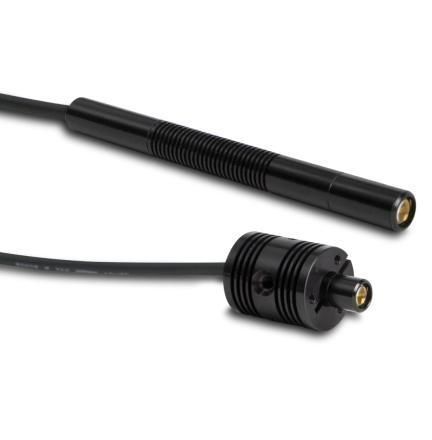

LED light module OmniCure V3

Overview
Designed for use with the OmniCure LX500 Controller, the OmniCure V3 UV LED Heads provide next-generation high-output UV LEDs delivering uniform dosage across the spot area for faster, more consistent cures in industrial manufacturing applications. The V3 Heads offer increased power delivery, improved efficiency and a refined beam profile, with a range of cross-compatible accessories available.

Thermal Management
The OmniCure V3 design integrates a copper core and optimized aluminum heat sink to extract and dissipate LED-generated heat, enabling effective air cooling and stable performance under demanding production conditions.

Key Features

• Next-generation high-output UV LEDs for improved optical performance
• Higher power delivery and enhanced efficiency versus previous generation
• Refined beam profile for uniform dosage across the spot area
• Optimized for a variety of industrial curing and manufacturing processes
• Advanced thermal path: copper core plus optimized aluminum heat sink
• LED temperature and lifetime monitoring via patented Intelli-Lamp® technology

Specifications (table)
Available wavelengths: 365 nm | 385 nm | 395 nm | 405 nm
Typical peak irradiance (3 mm lens): 16.5 | 27.3 | 27.0 | 23.8 W/cm² respectively
Optical power (max): 750 | 1,100 | 1,100 | 1,000 mW respectively
Typical LED lifetime: 20,000 hours (warranty: 10,000 hours or 3 years, whichever comes first)
LED monitoring: Temperature and lifetime monitored by patented Intelli-Lamp® technology
Cable included: 1 m (extension cables available: 1 m, 3 m, 10 m)
Head outside diameter: 12 mm
Light source classification: LED Class, Risk Group 3
Certifications: RoHS compliant; meets CE requirements
Warranty: Guarantee of 10,000 hours or 3 years.

caractéristiques / spécifications techniques

• Product family / name: OmniCure V3 UV LED Heads
• Compatible controller: OmniCure LX500 Controller
• Available wavelengths: 365 nm, 385 nm, 395 nm, 405 nm
• Typical peak irradiance (with 3 mm lens): 16.5, 27.3, 27.0, 23.8 W/cm² (by wavelength)
• Optical power (max): 750 mW, 1,100 mW, 1,100 mW, 1,000 mW (by wavelength)
• Typical LED lifetime: 20,000 hours (warranty guarantee of 10,000 hours or 3 years)
• Thermal management: copper core + optimized aluminum heat sink for enhanced air cooling
• LED monitoring: Temperature and lifetime monitoring via patented Intelli-Lamp® technology
• Cable: 1 meter included; extension cables available (1 m, 3 m, 10 m)
• Head outside diameter: 12 mm
• Light source classification: LED Class, Risk Group 3
• Certifications: RoHS compliant, meets CE requirements
