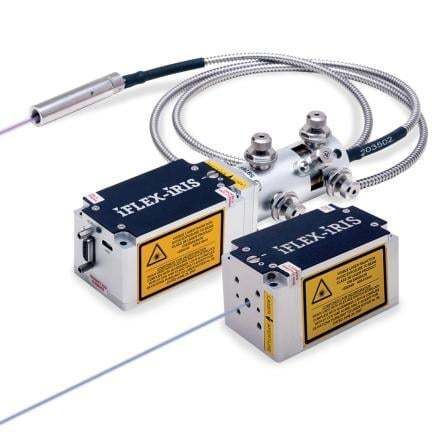

Continuous wave laser diode module iFLEX-iRIS™

CWsolid-stateultraviolet

Overview
The iFLEX-iRIS series are compact diode lasers available in wavelengths from 375–852 nm with power options up to 220 mW. On-board Closed-Loop Modulation (CLM) provides automatic power control for stable output over the device lifetime. Units can be used in free-space or coupled to polarization-maintaining fiber delivery systems such as kineFLEX®.

Ultra-Stable Closed-Loop Modulation
On-board CLM ensures automatic feedback control of output power across operating ranges (0.1–100%). CLM supports continuous-wave (CW), digital, analogue and dual-mode modulation, reducing periodic amplitude noise and maintaining consistent power for measurement and imaging workflows.

Features

• On-board Closed-Loop Modulation (CLM)
• Wavelength coverage: 375–852 nm
• Power options up to 220 mW
• Stable single-mode, linearly polarized output
• Output beam Ø: 0.7 ± 0.2 mm (1/e2)
• Low RMS and peak-to-peak amplitude noise
• Integrated electronics and TEC temperature control
• Plug-and-play free-space or fiber-coupled delivery
• CDRH-compliant interlock power supply

Specifications
Wavelength range: 375.0 - 852.0 nm
Beam Ø at 1/e2: 0.7 mm ± 0.2 mm
Power supply: 12 V DC, 1 A
Beam circularity: ≤ 1:1.2
Spatial mode: TEM00, M2 < 1.2 (typical)
Power stability (8 hrs): < 0.5 %
RMS noise (20 Hz - 20 MHz): < 0.05 %
Dimensions (L × W × H): 70.0 mm × 40.0 mm × 38.0 mm

Applications

• Metrology
• Flow cytometry
• Confocal and laser scanning microscopy
• Dynamic light scattering
• Forensics
• Total internal reflection fluorescence (TIRF)
• High-throughput screening
• High-resolution imaging systems
• DNA screening and genomics
• Ophthalmology

Technical specifications

• Wavelength range: 375.0 - 852.0 nm
• Beam Ø at 1/e2: 0.7 mm ± 0.2 mm
• Power supply: 12 V DC, 1 A
• Beam circularity: ≤ 1:1.2
• Spatial mode: TEM00, M2 < 1.2 typical
• Power stability (8 hrs): < 0.5 %
• RMS noise (20 Hz - 20 MHz): < 0.05 %
• Dimensions (L × W × H): 70.0 mm × 40.0 mm × 38.0 mm
• On-board Closed-Loop Modulation (CLM)
• Available wavelengths 375–852 nm; power options up to 220 mW
