UV curing system LightHammer® 6 MARK II

microwaveindustrialin-line

Overview

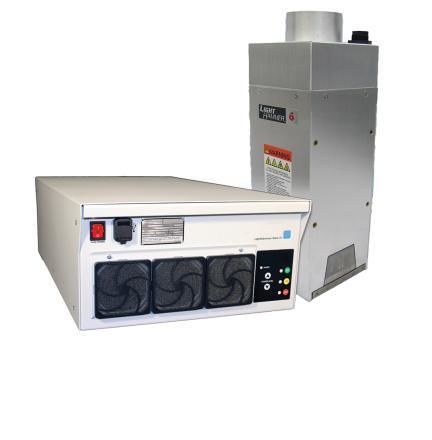

The Fusion UV LightHammer 6 MARK II is a microwave-driven UV curing system designed for inline industrial curing with a 150 mm (6 in) irradiator and a 200 W/cm (500 W/in) power class. The system comprises a modular irradiator (lamp module), an electrodeless UV bulb and a solid-state power supply available with internal or external cooling blower options. Its compact modular design simplifies integration into production lines and enables combining units to cover wider widths or complex-shaped surfaces.

Safety Note
Lamps contain mercury. Manage in accordance with local, state or federal disposal laws.

Features

• Software-based control for flexible process management and simplified configuration
• High compatibility and easy retrofitting – backward compatible with existing LH6 installations
• Improved uptime and reliability to minimize unscheduled production stops
• Multiple communication protocols: DeviceNet™, Profibus®, EtherNet/IP™, Dry Contact and plug & play options
• Power Factor Correction (PFC) – eliminates electrical harmonics, >99% at full load
• Reduced weight and optimized airflow for more efficient cooling

Specifications

• Smart solid-state power supply with software control and multiple communication interfaces
• Lamp bulb length: 150 mm (15 cm); available in D, H and V spectra
• Power class: 200 W/cm (500 W/in)
• Irradiator size: 150 mm (6 in)
• Irradiator footprint (W × L): 168 × 168 mm
• Variable power range: 35%–100% with fast on/off cycling

Applications

• Adhesive bonding
• Automotive components
• Metal decorating and coating
• Glass decorating
• Medical device marking and coating
• Electronic components
• Plastic decorating

Technical specifications

• Model: LightHammer 6 MARK II
• Irradiator width: 150 mm (6 in)
• Power class: 200 W/cm (500 W/in)
• Lamp bulb length: 150 mm (15 cm) — D, H, V spectra options
• Irradiator footprint (W × L): 168 × 168 mm
• Power control: variable 35%–100% with rapid on/off cycles
• Control interfaces: DeviceNet™, Profibus®, EtherNet/IP™, Dry Contact, Plug & Play
• Cooling: internal or external blower options
• Design advantages: modular combination for wider or complex surfaces, reduced weight, improved airflow, high PFC (>99% at full load)
