UV curing system

microwaveair-cooledplug-and-play

Overview

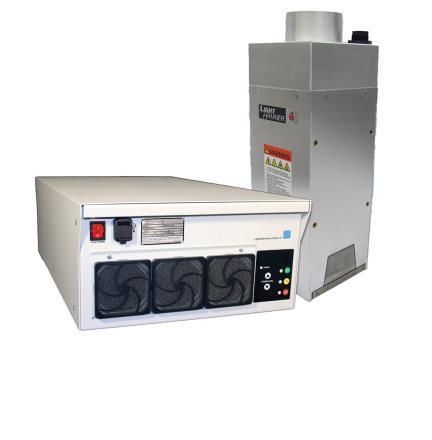

The LightHammer 6 MARK II is a microwave-powered electrodeless UV curing system with a 150 mm (6 inch) irradiator and a 200 W/cm (500 W/in) power class. It provides flexible software-based process control, lower operating costs, compact size and reduced weight for easier integration, and improved uptime. Modular units can be combined to cure across wider web widths or around complex-shaped surfaces.

Included components

• Irradiator (modular lamp)
• Electrodeless UV bulb
• Solid-state power supply
• Internal or external cooling blower

Key benefits

• Flexible control via software (smart power supply)
• Reduced operating costs
• Smaller and lighter for easier integration
• Reduced unscheduled downtime, increased uptime
• Modular design for wider widths or complex shapes

Features

• Software-driven control scheme for simplicity and flexibility
• High compatibility and ease of integration – backward compatible with existing LH6 installations
• Improved uptime and reliability to minimize unscheduled downtime
• Multiple communication protocols – DeviceNet™, Profibus®, EtherNet/IP™, Dry Contact, and plug & play options
• Power factor correction – eliminates electrical harmonics, >99% at full load
• Reduced weight and improved airflow for more efficient cooling

Applications

• Adhesive bonding
• Automotive components
• Metal decorating and coating
• Glass decorating
• Medical device marking and coating
• Electronic components
• Plastic decorating

Safety and handling

• Lamps contain mercury. Manage and dispose in accordance with applicable local, state or federal regulations.

Technical specifications

• Irradiator size: 150 mm (6 inch)
• Power class: 200 W/cm (500 W/in)
• Smart power supply: software-based flexible control; reduced operating costs; compact and lighter design
• Lamp bulb length: 150 mm; available in D, H and V spectra
• Irradiator footprint (W x L): 168 x 168 mm
• Variable power capability: 35% to 100% with fast on/off cycles
