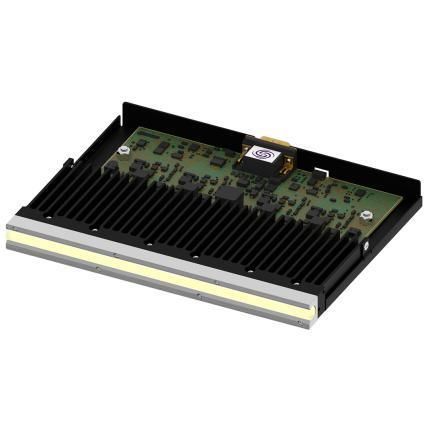

Convection curing system FireEdge™ FE100

UVUV LEDfor coating

Overview The FireEdge™ FE100 is an air-cooled UV LED curing system that uses passive natural convection for thermal management. Its extremely slim form factor includes an 8 mm emitting window diameter option and compact emitting window lengths, enabling precise finish control in space-constrained processes such as digital inkjet pinning and flat panel display edge curing. Ambient cooling removes the need for external forced-air or chiller systems. Instant on/off and full intensity control support repeatable results in production environments.

Key features

• Peak irradiance: 2 W/cm² at 385, 395, 405 nm; 1 W/cm² at 365 nm
• Patented WhisperCure technology for reduced acoustic emission
• Natural convection (ambient) cooling — no external chiller or forced-air required
• Extremely slim form factor with 8 mm emitting window diameter option
• Available emitting window lengths: 80×10, 120×10, 180×10, 240×10 mm
• Analog control with instant on/off and complete intensity adjustment

Applications

• Digital inkjet printing (pinning and full cure)
• Adhesive curing in assembly processes
• Coating cure and surface finishing

Specifications (table)
Wavelengths: 365 nm (1 W/cm² peak); 385, 395, 405 nm (2 W/cm² peak)
Peak irradiance: 2 W/cm² (385/395/405 nm); 1 W/cm² (365 nm)
Emitting window sizes (mm): 80×10; 120×10; 180×10; 240×10 (slim 8 mm diameter option for edge curing)
48 Vdc Power In (Max): 80×10 = 34 W / 0.7 A; 120×10 = 50 W / 1.1 A; 180×10 = 75 W / 1.6 A; 240×10 = 100 W / 2.1 A

Technical specifications

• Model: FireEdge™ FE100
• Brand: Phoseon
• Cooling: Air-cooled via natural convection (ambient cooling; no external forced-air or chiller required)
• Control: Instant on/off; complete intensity control; analog control interface
• WhisperCure technology: Patented lower-noise operation
• Available wavelengths: 365 nm; 385 nm; 395 nm; 405 nm
• Peak irradiance: 2 W/cm² (385/395/405 nm); 1 W/cm² (365 nm)
• Emitting window: 8 mm diameter option for edge curing; available lengths: 80×10, 120×10, 180×10, 240×10 mm
• 48 Vdc Power In (Max) by emitting window: 80×10 = 34 W / 0.7 A; 120×10 = 50 W / 1.1 A; 180×10 = 75 W / 1.6 A; 240×10 = 100 W / 2.1 A
• Form factor: Extremely slim for space-limited industrial applications
