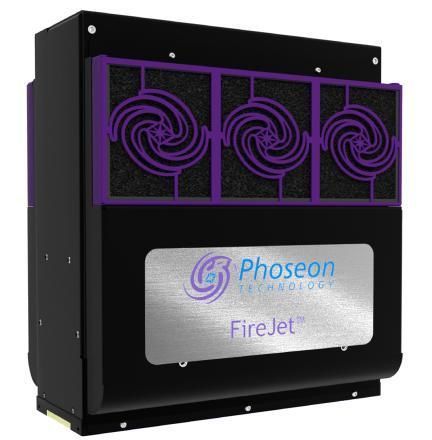

UV LED curing system FireJet FJ240

UVair-cooledin-line

Product overview
The Phoseon FireJet FJ240 UV LED large-area curing system is engineered for scanning cures that demand high UV dose and extended dwell time. This air-cooled, high-power emitter family offers scalable emitting window lengths for flexible installation in printing and coating lines and provides greater UV output than FireJet One and FireJet FJ100. Modbus TCP is available for integration and remote access.

Key technologies

• WhisperCure for reduced acoustic emissions and stable operation
• TargetCure for consistent, repeatable curing performance
• Modbus TCP support for integration and remote monitoring

Features

• Air-cooled UV LED large-area emitter with 40 mm width
• Broad exposure window optimized for scanning cures requiring maximum dosing and dwell time
• Scalable window lengths enabling modular installations
• Quiet operation enabled by WhisperCure technology
• Consistent output and reliability via TargetCure

Emitting window options (available lengths)

• 75 x 40 mm
• 150 x 40 mm
• 225 x 40 mm
• 300 x 40 mm
• 375 x 40 mm

Applications

• Digital inkjet printing
• Wood coatings

Technical specifications

• General: air-cooled UV LED large-area curing system; emitter width 40 mm; scalable to multiple curing lengths; peak irradiance up to 16 W/cm² depending on wavelength and configuration
• 365 nm configuration: Wavelength: 365 nm; Peak irradiance: 8 W/cm²; Emitting windows (mm): 75x40, 150x40, 225x40, 300x40, 375x40; UV power (W): 200, 400, 600, 800, 1000; 48 V input (Max): 720 W / 15 A, 1440 W / 30 A, 2160 W / 45 A, 2880 W / 60 A, 3600 W / 75 A
• 385/395/405 nm configurations: Wavelengths: 385, 395, 405 nm; Peak irradiance options: 12 W/cm² or 16 W/cm²; Emitting windows (mm): 75x40, 150x40, 225x40, 300x40, 375x40; UV power (W) for 12 W/cm²: 300, 600, 900, 1200, 1500; UV power (W) for 16 W/cm²: 400, 800, 1200, 1600, 2000; 48 V input (Max) for 12 W/cm²: 768 W / 16 A, 1536 W / 32 A, 2304 W / 48 A, 3072 W / 64 A, 3840 W / 80 A; 48 V input (Max) for 16 W/cm²: 1008 W / 21 A, 2016 W / 42 A, 3024 W / 63 A, 4032 W / 84 A, 5040 W / 105 A
• Control and communication: Modbus TCP available for remote access and high-speed data exchange
