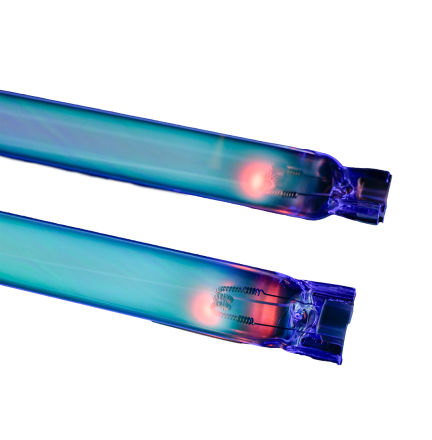

Tubular bulb NNI800Light

mercuryhigh-power

Overview
The NNILight series delivers low-pressure out-of-arc amalgam UVC lamps designed for industrial water and air treatment. Available in 800 W (NNI800Light) and 1000 W (NNI1000Light) ratings, these lamps provide high UVC output, stable operation across a wide temperature range while dimming, optional ozone generation and extended service life. Lamps contain mercury; handle and dispose in accordance with applicable regulations.

Details
Out-of-arc amalgam technology positions the UV-emitting arc segment outside the main lamp envelope to maximize UVC emission and improve temperature stability. This design reduces replacement frequency and system downtime and lowers overall energy consumption. NNILight lamps are suitable for both direct water disinfection and advanced oxidation processes (AOP). In air-treatment configurations they can be specified to generate ozone to assist in removing chemical contaminants; in water they promote hydroxyl (OH) radical formation to support TOC reduction.

Models

• NNI800Light — 800 W
• NNI1000Light — 1000 W

Applications

• Drinking water and wastewater treatment
• Agriculture
• Process and industrial water (food & beverage, dichlorination)
• Air treatment
• Advanced oxidation processes (AOP)
• Aquaculture and fish hatcheries
• Pool and spa water
• Surface treatment

Tabular specifications
Model, NNI800Light, NNI1000Light
Lamp Power, 800 W, 1000 W
Operating Position, horizontal to vertical, horizontal to vertical
Tube Temperature, max. 150°C, max. 150°C
Tube Diameter, 38 mm, 38 mm
Arc Length, 1600 mm, 2000 mm
Radiation Flux at 254 nm, 300 W, 370 W
Available as, ozone-generating / ozone-free, ozone-generating / ozone-free
Customizing Options, lamp bases, connectors, lamp bases, connectors

Technical specifications

• Series: NNILight
• Models: NNI800Light (800 W), NNI1000Light (1000 W)
• Operating position: horizontal to vertical
• Maximum tube temperature: 150°C
• Tube diameter: 38 mm
• Arc length: 1600 mm (NNI800Light), 2000 mm (NNI1000Light)
• Radiation flux at 254 nm: 300 W (NNI800Light), 370 W (NNI1000Light)
• Available versions: ozone-generating or ozone-free
• Customizing options: lamp bases and connectors
• Applications: drinking and wastewater treatment; agriculture; process/industrial water; air treatment; advanced oxidation processes (AOP); aquaculture and fish hatcheries; pool & spa water; surface treatment
• Contains mercury — manage and dispose in accordance with local, state or federal disposal laws
