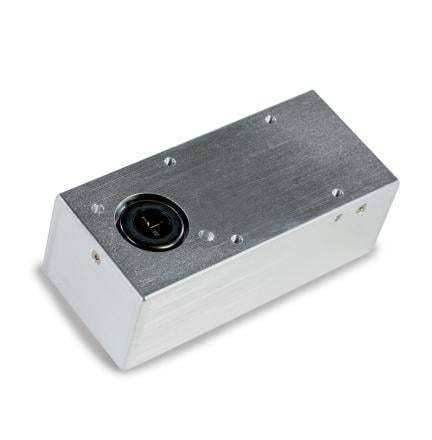

Xenon lamp light source LS-6

infraredultravioletbroadband

Overview
The Excelitas LS-6 is a 6 Watt pulsed xenon light source providing microsecond-duration broadband pulses with exceptional arc stability. The compact, integrated module contains the short-arc xenon flash lamp, trigger circuit and power supply within an EMI-suppressant enclosure to facilitate integration in analytical and diagnostic instruments.

Key features

• Microsecond-duration broadband pulses (UV–IR)
• High arc stability (<1% CV)
• Compact, pre-aligned module with flash lamp, trigger circuit and power supply
• EMI-suppressant enclosure for reduced interference
• High-stability short-arc xenon lamps
• Average power: 6 Watts

Performance and applications
The LS-6 delivers selectable flash energy levels and 6 W average power in a compact, pre-aligned module. Its stable, long-life xenon lamps are suited to clinical diagnostics, in vitro diagnostics, life-science instrumentation, drug discovery, proteomics and analytical instrumentation.

Documentation available
Datasheets and selection guides are provided to support product specification and instrument integration.

Technical specifications

• Average power: 6 Watts
• Pulse type: Pulsed, microsecond-duration pulses
• Light source: Short-arc xenon flash lamp producing broadband spectrum (UV to IR)
• Arc stability: <1% CV guaranteed
• Lifetime: Long-life lamps
• Module: Compact, pre-aligned module
• Integration: Includes flash lamp, trigger circuit and power supply
• Enclosure: EMI-suppressant enclosure
• Mounting: Flexible mounting options
• Certifications: CE marked
• Target applications: Clinical diagnostics, in vitro diagnostics, life sciences, drug discovery, proteomics, analytical instrumentation
