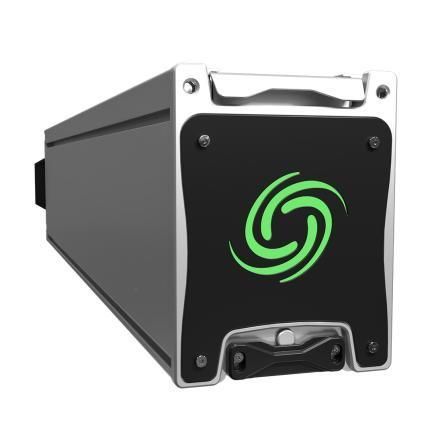

UV LED curing system Nexus II™

UVair-cooled

Overview
The Phoseon Nexus II™ air-cooled UV LED curing system is designed for flexographic printing on labels and packaging. Featuring patented thermal management and ValidCure™ Technology, Nexus II delivers high total UV power output for increased press speeds, improved uptime and extended product lifetime.

Product details
Nexus II incorporates high‑power LEDs and patented cooling to provide high energy density and fast, uniform curing across web widths used in label and packaging production. The system offers real‑time remote monitoring via Nexus DataHub and is available with a five‑year full system warranty to protect the investment.

Features

• Patented thermal management techniques to extend LED lifetime and maintain reliability
• ValidCure™ Technology for validation of delivered curing power at the material surface
• Real‑time remote monitoring and diagnostics through Nexus DataHub
• Available five‑year full system warranty
• High‑power LEDs providing high energy density for fast, uniform curing

Applications

• Flexographic printing for labels and packaging

Specifications (table)
Wavelength | 395 nm
SLM™ Light Output Energy per Segment | 65 W
Max. Web Width (mm) | 300, 375, 450, 525, 600
120±5V Power In (Max) | 300 mm: 2040W / 17A; 375 mm: 2600W / 22A; 450 mm: 3200W / 27A; 525 mm: 3960W / 33A; 600 mm: 4560W / 38A

Technical specifications

• Model family: Nexus II™
• Wavelength: 395 nm
• SLM™ light output energy per segment: 65 W
• Supported max web widths: 300 mm, 375 mm, 450 mm, 525 mm, 600 mm
• 120±5V power in (max) by web width: 300 mm = 2040W (17A); 375 mm = 2600W (22A); 450 mm = 3200W (27A); 525 mm = 3960W (33A); 600 mm = 4560W (38A)
• Patented thermal management for extended lifetime
• ValidCure™ Technology ensures validated curing at the material surface
• Nexus DataHub for real‑time remote monitoring and data connectivity
• High energy density LEDs for fast, uniform curing of labels and packaging
• Available five‑year full system warranty
