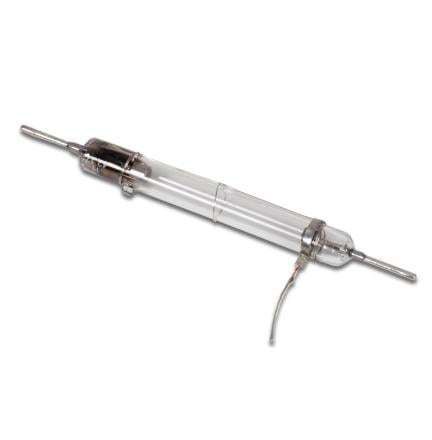

Xenon bulb

for warning lights

Overview
Excelitas offers complete plug-in flashlamp solutions — lamps, sockets and integrated trigger coils — that can be configured for warning beacon systems. Multiple quartz envelope options and dedicated long-life electrodes reduce maintenance frequency and total lifecycle costs.

Triggering Methods
Depending on operating conditions, lamp design and glass material, Excelitas flashlamps use efficient triggering methods such as wire, silver lining, conductive coating or a band to ensure reliable ignition and consistent flash timing.

Available for Warning Beacon Applications
The following part types are suitable for warning beacon use. Detailed electrical and mechanical parameters for each part are given below to support system integration and component selection.

Specifications (table)
Part Type | Shape | Energy (Ws) | Power (W) | Anode Voltage (min/nom/max) V | Arc Length (mm) | Glass Body Length (mm) | Overall Length (mm) | Glass Diameter (mm) | Radius (mm) | Pin Distance (mm) | Flashes / sec | Life Flashes | Envelope Material | Recommendations | Trigger Coil | Capacitor (µF) | Primary Trigger Voltage (V)
EG 3771 | linear | 32 | 32 | 300 / 450 / 600 | 68 | – | 117 | 7 | – | – | 4 | 9 x 10^6 | Q 1* | ZS 1052 | ZS 1052 | 0.22 | 250
EGL 3841 | linear | 40 | 40 | 400 / 500 / 550 | 40 | 69 | 113 | 8 | – | – | 4 | 1 x 10^7 | Q 2* | STS 36 | STS 36 | 0.47 | 300

Characteristics / technical specifications

• Part: EG 3771 — Shape: linear; Energy: 32 Ws; Power: 32 W; Anode Voltage: 300 / 450 / 600 V; Arc Length: 68 mm; Glass Body Length: –; Overall Length: 117 mm; Glass Diameter: 7 mm; Flashes/sec: 4; Life Flashes: 9 x 10^6; Envelope Material: Q 1*; Recommendation: ZS 1052; Trigger Coil: ZS 1052; Capacitor: 0.22 µF; Primary Trigger Voltage: 250 V.
• Part: EGL 3841 — Shape: linear; Energy: 40 Ws; Power: 40 W; Anode Voltage: 400 / 500 / 550 V; Arc Length: 40 mm; Glass Body Length: 69 mm; Overall Length: 113 mm; Glass Diameter: 8 mm; Flashes/sec: 4; Life Flashes: 1 x 10^7; Envelope Material: Q 2*; Recommendation: STS 36; Trigger Coil: STS 36; Capacitor: 0.47 µF; Primary Trigger Voltage: 300 V.
