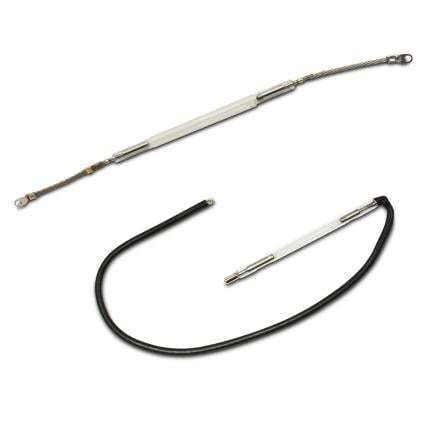

Lamp bulb C24XML

high-power

Description
Excelitas developed Series 2000 flashlamps for demanding high peak and average power conditions. These water-cooled flashlamps are engineered for applications such as flashlamp-pumped laser welders, medical lasers (dermatology and surgical procedures) and accelerated weathering tests. The design combines Series 2000 cathode technology, high-quality quartz envelopes (cerium-doped options), tailored gas fills and impedance tuning to match customer requirements while maximizing operational lifetime.

Applications and Support
Excelitas works with OEMs and system integrators worldwide to specify, prototype and qualify flashlamp assemblies for high-power, water-cooled installations. Technical support includes lamp selection, impedance matching, cooling recommendations and lifecycle guidance to ensure reliable performance in industrial and medical environments.

Key Features

• Series 2000 cathode technology optimized for high peak and average power
• Cerium-doped and standard quartz envelope options for spectral and durability needs
• Customized xenon fill and impedance adjustments to meet customer specifications
• Input power capability up to 300 W/cm2 in the emitting region
• Energy input optimization range from 5 J to 10,000 J
• Available assembly types: wire and endcap

Specifications (table)
Type — OD/mm — arc/mm — Power/W — Voltage/V — Max-non-Flex Length/mm — Overall Length/mm — Quartz type — Fill pressure/Torr — Gas Type — Assembly Type
C24XML — 6 — 50 — 1000 — 600 — 143.1 — — Cerium — 700 — Xenon — wire
C26XML — 8 — 50 — 1500 — 600 — 143.1 — — Cerium — 700 — Xenon — wire
C36XMB — 8 — 75 — 2500 — 700 — — 170.4 — Cerium — 700 — Xenon — endcap
C24XMB — 6 — 50 — 1000 — 600 — — 145.9 — Cerium — 700 — Xenon — endcap
C34XMB — 6 — 75 — 1500 — 700 — — 170.9 — Cerium — 700 — Xenon — endcap
C36XML — 8 — 75 — 2500 — 700 — 168.1 — — Cerium — 700 — Xenon — wire
C26XMB — 8 — 50 — 1500 — 600 — — 145.4 — Cerium — 700 — Xenon — endcap
C34XML — 6 — 75 — 1500 — 700 — 168.1 — — Cerium — 700 — Xenon — wire

Technical specifications

• Series 2000 cathode technology for sustained high peak and average power performance
• High-quality quartz envelopes with cerium-doped options to improve spectral characteristics and durability
• Customized gas mixtures (xenon) and impedance adjustments to match pulse energy and system requirements
• Input power capability: up to 300 W/cm2 in the emitting region
• Energy input optimization: 5 J to 10,000 J
• Available types and key parameters:
  • C24XML — OD 6 mm, arc 50 mm, Power 1000 W, Voltage 600 V, Max-non-Flex Length 143.1 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: wire
  • C26XML — OD 8 mm, arc 50 mm, Power 1500 W, Voltage 600 V, Max-non-Flex Length 143.1 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: wire
  • C36XMB — OD 8 mm, arc 75 mm, Power 2500 W, Voltage 700 V, Overall Length 170.4 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: endcap
  • C24XMB — OD 6 mm, arc 50 mm, Power 1000 W, Voltage 600 V, Overall Length 145.9 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: endcap
  • C34XMB — OD 6 mm, arc 75 mm, Power 1500 W, Voltage 700 V, Overall Length 170.9 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: endcap
  • C36XML — OD 8 mm, arc 75 mm, Power 2500 W, Voltage 700 V, Max-non-Flex Length 168.1 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: wire
  • C26XMB — OD 8 mm, arc 50 mm, Power 1500 W, Voltage 600 V, Overall Length 145.4 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: endcap
  • C34XML — OD 6 mm, arc 75 mm, Power 1500 W, Voltage 700 V, Max-non-Flex Length 168.1 mm, Quartz: Cerium, Fill pressure 700 Torr, Gas: Xenon, Assembly: wire
