UV LED curing system OmniCure® AC9⁺

in-lineindustrialair-cooled

Product overview

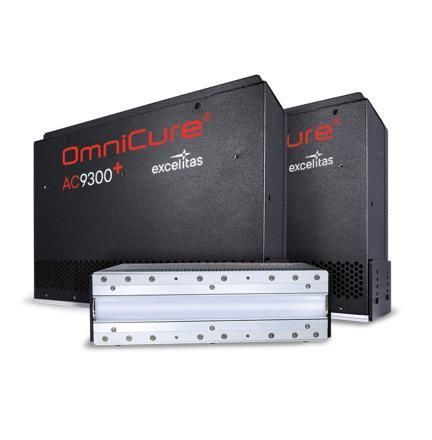

OmniCure AC9⁺ is an air-cooled UV LED large-area curing system delivering up to 14 W/cm² peak irradiance with high longitudinal uniformity across optical widths of 150 mm to 300 mm. Available in 365 nm, 385 nm, 395 nm and 405 nm peak wavelengths. Standard models use focusing optics for longer working distances; P versions include enhanced optics and a removable front window optimized for short working distances in print applications. OmniCure LED module control enables active optimization of uniformity for repeatable curing results.

Key capabilities
Multiple AC9⁺ heads can be joined to create extended curing lengths while maintaining optical uniformity between modules (±5%). The scalable design supports higher throughput and flexible integration into production lines without the need for external venting, ozone extraction or chillers. Integrated PLC controls provide intensity management and system alarms for automated processes.

Features

• Peak irradiance up to 14 W/cm² for fast curing of inks, adhesives and coatings
• Focusing front-end optics for high peak irradiance at longer working distances
• Enhanced optics and removable window on P versions for optimized dose at short working distances and easier maintenance in printing environments
• Individual LED module control for superior longitudinal uniformity across the curing area
• Scalable: multiple heads can be joined while maintaining ±5% uniformity between heads
• Available peak wavelengths: 365 nm, 385 nm, 395 nm, 405 nm to match formulation requirements
• Compact air-cooled design integrates into workstations without additional ventilation or chillers
• High-efficiency LED modules reduce power consumption compared to arc lamp systems
• High-efficiency VOC air filters for reliable operation in harsh air quality environments
• Estimated LED life > 40,000 hours to lower operating costs versus arc lamps

Specifications
FEATURE : SPECIFICATION
Estimated LED Life : > 40,000 hours
Variable Intensity Range : 20 – 100 %
Longitudinal Uniformity : Better than ±5 %
Operating Voltage : 48 V DC ±2 V
Cooling : Air
Automation : Integrated PLC controls for UV intensity and system alarms
LED Warranty : 2 years or 10,000 service hours (whichever comes first)

MODEL | OPTICAL SIZE (mm) | MAX. POWER CONSUMPTION (W) | OPERATING CURRENT (A) | PEAK WAVELENGTH (nm) | MAX. OPTICAL POWER (W) | PEAK IRRADIANCE (W/Cm²) | WEIGHT (kg)
AC9150+, AC9150P+ | 150 x 30 | 1,603 | 33 | 365 / 385, 395, 405 | 280 / 350 | 11 / 14 | 2.0
AC9225+, AC9225P+ | 225 x 30 | 2,400 | 50 | 365 / 385, 395, 405 | 420 / 525 | 11 / 14 | 2.5
AC9300+, AC9300P+ | 300 x 30 | 3,203 | 67 | 365 / 385, 395, 405 | 560 / 700 | 11 / 14 | 3.7

Documentation

• Brochure - OmniCure AC9⁺ LED UV Curing System
• Quick Start Guide - OmniCure AC9⁺ LED UV Curing System
• User Guide - OmniCure AC9⁺ LED UV Curing System
• Warranty Details - OmniCure UV Curing Products
• OM App-Note: Applications on fiber optic and electrical cables
